Brecknell 816965004638 Scale

The Brecknell 816965004638 Scale has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

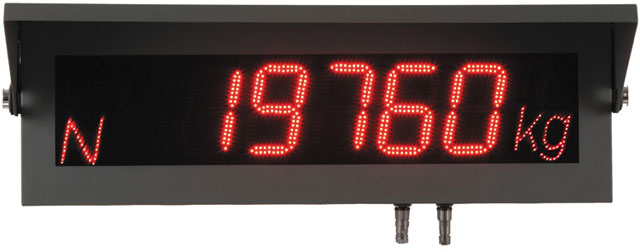

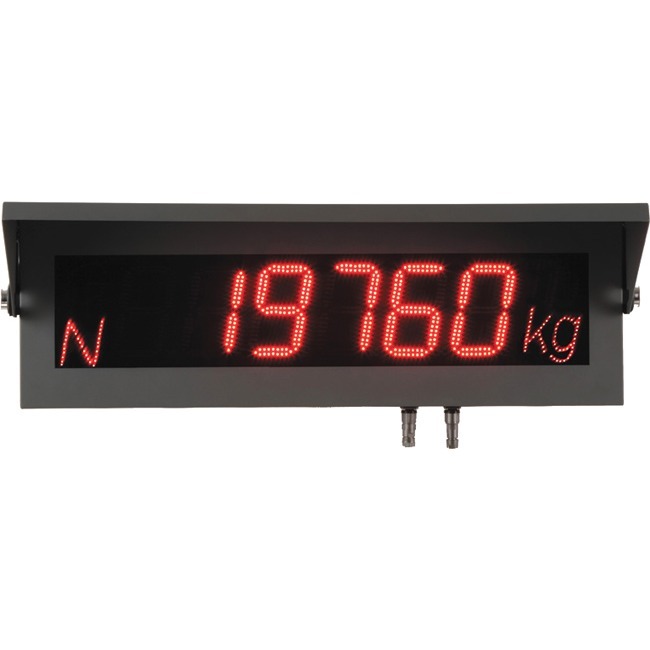

Brecknell RD-65 - 5" 6 digit LED display visible up to 150'

Display- Double row ultra bright large 127 mm / 5", six digit LED display visible up to 46m / 150'
Displays up to 999,999 or down to -99,999
Serial Port- RS-232, RS-485 with selection up to 14 protocols, three data formats and eight types of baud rates
Highly Durable- Powder coated mild steel enclosure (IP65) with sun visor and fixed mounting brackets
Annunciator- kg, lb, G (gross), N (net)

Need a different version? See all Brecknell RD-65 Scales

Discontinued Need Assistance?

Add to Quote

Overview

Full specifications (PDF)

Brecknell RD-65 Scale Model Overview

The RD-65 has a powder coated mild steel enclosure (IP65) with wall mount swivel bracket or easy to install hanging rings. Adjustable sun visor included. Double row ultra bright large 5", 6 Digit LED Display visible

Detailed Specs

Full specifications (PDF)

Physical Characteristics

Material:

Steel - Enclosure

Height:

11"

Width:

4.8"

Length:

30.5"

Miscellaneous

Additional Information:

Specifications

Enclosure:
Powder Coated, Mild Steel
Non Glare Lens
Display:
Display Type: 127 mm / 5" seven segment red
LED display
Annunciators: kg, lb, G (gross), N (net)
Display Characters: 999,999 to -99,999
Communication Interface:
Serial Cable Length 10 m / 32'
Serial Port: RS-232, RS-485
Data Format: 8N1, 7E1 or 7O1
Baud Rate: 1200, 2400, 4800, 9600, 19200, 38400,
57600, 115200
Compatible with Most:
Brecknell, Dillon, Avery Weigh-Tronix, GSE, Cardinal,
Rice Lake & Transcell indicators - Power Adapter:
Input: 100 - 240VAC, 50/60HZ
Output: 24 VDC, 2.5 amp
Power Requirement:
11-32 VDC
Operating Temperature:
-15° C to 50° C / -5° F to 122° F
Shipping Weight: 17 kg / 37 lb
Package Dimension:

910 mm (L) x 470 mm (W) x 165 mm (H)
35.8" L x 18.5" W x 6.5" H
Certification: CE
Warranty:
One Year from Shipment
Product Code:
816965004638

Application/Usage:

Weight Scale

Compatibility:

Brecknell RD-65 Weight Scale

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0816965004638

UPC: 816965004638

EAN: 0816965004638
