Brecknell 56978-0208 Scale

Part Number: 56978-0208

Model: DCSB Series

$1,716.92

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Maximum Weight Capacity (Imperial)

10000 lb

Maximum Weight Capacity (SI)

5000 kg

Weight Increment (Imperial)

2 lb

Weight Increment (SI)

2 kg

Product Description:

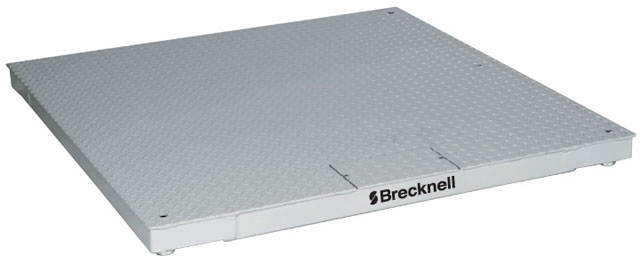

Brecknell DCSB6060-10 Digital Floor Scale - 10000 lb / 5000 kg Maximum Weight Capacity

Explore all Brecknell DCSB Series Scales

Add to Quote

Overview

Full specifications (PDF)

Brecknell DCSB Series Scale Model Overview

The Brecknell Pegasus Floor Scale is a robust and reliable weighing solution, designed for both pit mounted and free standing applications. With a rugged construction featuring a 6 mm thick top plate and a heavy-duty welded channel support, this scale ensures durability and stability. It is NTEP certified for trade, offering precision with an accuracy of 5,000 divisions. Its low profile design and adjustable leveling feet make installation easy, while the closed corners protect the leveling feet during setup. Ideal for commercial and industrial environments, this scale delivers consistent performance in demanding conditions.

Key Features

Rugged Construction: 0.25" thick top plate with heavy-duty welding.
Legal for Trade: NTEP certified at 5,000 divisions.
Low Profile: Just 3.1 inches high for easy access.
Versatile: Use it pit mounted or free standing.
Durable Material: Constructed from mild steel with a powder coat finish.

Specifications

Capacity: 2,000 x 0.5 lb, 5,000 x 1 lb, 10,000 x 2 lb
Dimensions: Various models ranging from 36 x 36 x 3.1 inches to 72 x 48 x 3.1 inches.
Operating Temperature: -10° C to 40° C (14° F to 104° F)
Load Cells: Four alloy tool steel potted with overload protection at 150% of rated capacity.
J-Box Construction: Durable ABS plastic with top access for easy installation.
IP Rating: Rated IP 65.
Accuracy: NTEP certified, Class III.

Brecknell 56978-0208 Scale Overview

IP65 rated mild steel general purpose floor scale with alloy tool steel potted load cells. Legal for Trade, NTEP certified at 5,000 divisions.

Typical Applications: Livestock, Shipping, Warehouse

Detailed Specs

Full specifications (PDF)

Technical Information

Maximum Weight Capacity (Imperial):

10000 lb

Maximum Weight Capacity (SI):

5000 kg

Weight Increment (Imperial):

2 lb

Weight Increment (SI):

2 kg

Measurement Type:

Kilogram
Pound

Application/Usage:

Shipping
Warehouse

Features:

Adjustable Leveling Feet
Overload Protection
Rugged Design
Free Standing

Physical Characteristics

Product Material:

Mild Steel
Stainless Steel

Miscellaneous

Certifications & Standards:

NTEP

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0030955634296

UPC: 030955634296

EAN: 0030955634296

UNSPSC: 41111509
