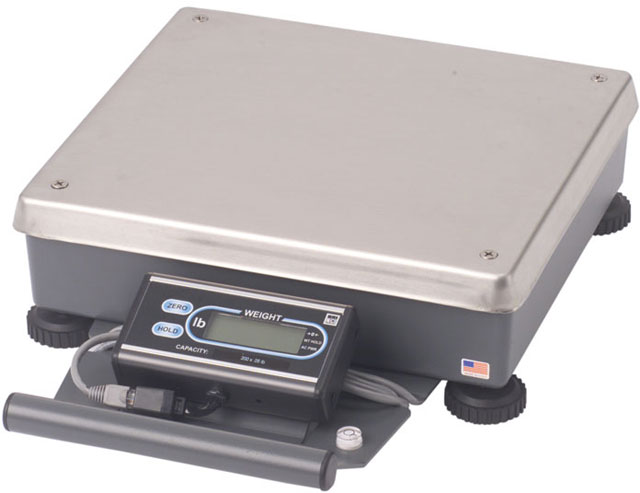

Brecknell 7820B Scale Model Overview

The 7820B is a portable digital electronic parcel bench scale specifically designed for shipping applications and is legal for trade.

Detailed Specs

Full specifications (PDF)

Technical Information

Maximum Weight Capacity (Imperial):

200 lb

Maximum Weight Capacity (SI):

100 kg

Weight Increment (Imperial):

0.80 oz

Weight Increment (SI):

20 g

Measurement Type:

Pound
Kilogram

Features:

Auto Shutoff
Auto Zero Function
Hold Lock in Weight

Display & Graphics

Display Screen Type:

LCD

Number of Characters:

Interfaces/Ports

Total Number of Ports:

Number of Serial Ports:

Controls/Indicators

Status Indicators:

Remote Display Enunciators:

Zero
Hold
AC Power

Controls:

Remote Display Controls:

Zero Key
Hold Key

Weight Hold Settings

Single
Auto
Sealed

Backlit Settings:

Auto
On
Off

Battery Conservation:

Sleep
Auto Shutdown
Restart Button

Battery Information

Number of Batteries Supported:

Power Description

Input Voltage:

120 V AC

Power Source:

AC Adapter
Battery

Physical Characteristics

Material:

Stainless Steel Platform
Aluminum Base

Height:

4.6"

Width:

19.5"

Depth:

12"

Miscellaneous

Additional Information:

Remote Display Controls:

Zero Key: Includes 2% Auto Zero tracking or manual push button to reestablish zero reference. Turns the scale OFF, when operated via battery
Hold Key: Enables or disables weight hold feature. Enters into backlit and weight hold setting configuration

Weight Hold Settings:

Single: Allows you to hold the parcel weight on the display for one parcel
Auto: Allows you to hold the parcel weight on the display for unlimited parcels
Sealed: Some states may not accept weight hold in NTEP approved applications. The sealed mode disables the weight feature

Backlit Settings:

Auto: Back light turns off after 5 seconds of non use
On: Back light is always on
Off: Back light is always off

Battery Conservation:

Sleep: After 5 minutes of non-use the scale will enter into sleep mode. Pressing the zero key will re-activate the scale
Auto Shutdown: After 1 hour of non use the scale will shutdown. Pressing the restart button will re-start the scale
Restart Button: While in battery operation mode, the restart button (located on the rear of the scale) turns on the scale
Hard Wired Battery Cable: Battery cable is hard wired to main PCB, no external connections

Rugged Construction:

Die-cast base and loadbridge, stainless steel shroud

Portable:

Carrying handle makes it easy to move from one location to another

Battery Operated:

Rechargeable sealed lead-acid battery installed with each unit

Certifications & Standards:

NTEP Class lll, 4,000d CC #95-070
UL
CSA

Item Numbers

UNSPSC: 41111500
