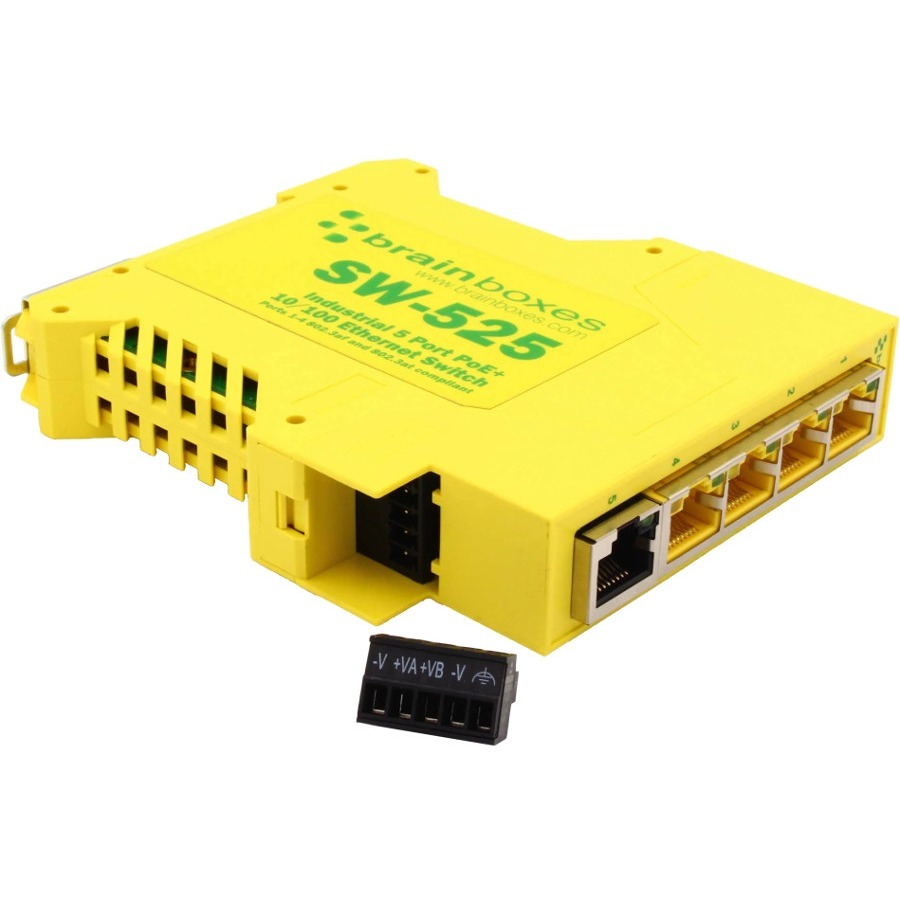

Brainboxes SW-525 Network Switch

Brainboxes - Brainboxes Industrial 5 Port PoE+ 10/100 Ethernet Switch, 5 Ports, Fast Ethernet, 10/100Base-T, TAA Compliant, 2 Layer Supported, 4 W Power Consumption, 90 W PoE Budget, Twisted Pair, PoE Ports, DIN Rail Mountable, Compact, Lifetime Limited Warranty

Allows power and data to be combined on the same Ethernet cable
Ports 1-4 PoE+ capable
Ports 1-4 IEEE 802.3af/at compliant: deliver up to 30W to each port (backwards compatible)
PoE Power Budget: 90W @ 70ºC between all 4 PoE ports simultaneously
Redundant dual power inputs: +44V to +57V DC
Industrial operating temp range -40°C to +70°C / -40°F to +176°F

Need a different version? See all Brainboxes Parts Network/IP Video Surveillance Equipments

$261.86

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.

Brainboxes SW-525 Network Switch Overview

Industrial Compact 5 Port PoE+ Fast Ethernet device. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +70°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Send power and data to remote CCTV cameras, PoE telephones, PoE Wifi access points, NVRs, and more

Detailed Specs

Interfaces/Ports

Total Number of Network Ports:

Network (RJ-45):

Yes

Port/Expansion Slot Details:

4 x Fast Ethernet PoE+
1 x Fast Ethernet Network

Media & Performance

Media Type Supported:

Twisted Pair

Ethernet Technology:

Fast Ethernet

Network Technology:

10/100Base-T

Network & Communication

Layer Supported:

Networking Standards:

IEEE 802.3at
IEEE 802.3af

Management & Protocols

Manageable:

Power Description

PoE (RJ-45) Port:

Yes

PoE Budget:

90 W

Input Voltage:

44 V DC
57 V DC

Power Source:

Power Supply
USB

Redundant Power Supply Supported:

Yes

Power Consumption:

4 W

Plug/Connector Type:

Terminal Block

Physical Characteristics

Form Factor:

DIN Rail Mountable
Compact

Height:

4.7"

Width:

3.9"

Depth:

0.4"

Weight (Approximate):

4.37 oz

Miscellaneous

Package Contents:

Industrial 5 Port PoE+ 10/100 Ethernet Switch
Quick Start Guide

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

Great Britain

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0837324004533

UPC: 837324004533

EAN: 0837324004533

UNSPSC: 43222612
