Brainboxes SW-514 Data Networking

Part Number: SW-514
Model: Parts
Add to My Shopping List Add to Compare
$124.18
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
4
Uplink Port
No
Modular
No
Stack Port
No

Product Description:

  Brainboxes Compact Industrial 4 Port Gigabit Ethernet Switch, 4 Ports, Gigabit Ethernet, 10/100/1000Base-T, TAA Compliant, 2 Layer Supported, 3.60 W Power Consumption, Twisted Pair, DIN Rail Mountable, Lifetime Limited Warranty
Explore all Brainboxes Parts Network/IP Video Surveillance Equipments
Add to Quote
Brainboxes SW-514 Data Networking
Brainboxes SW-514 Data Networking

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.
Brainboxes SW-514 Data Networking Overview

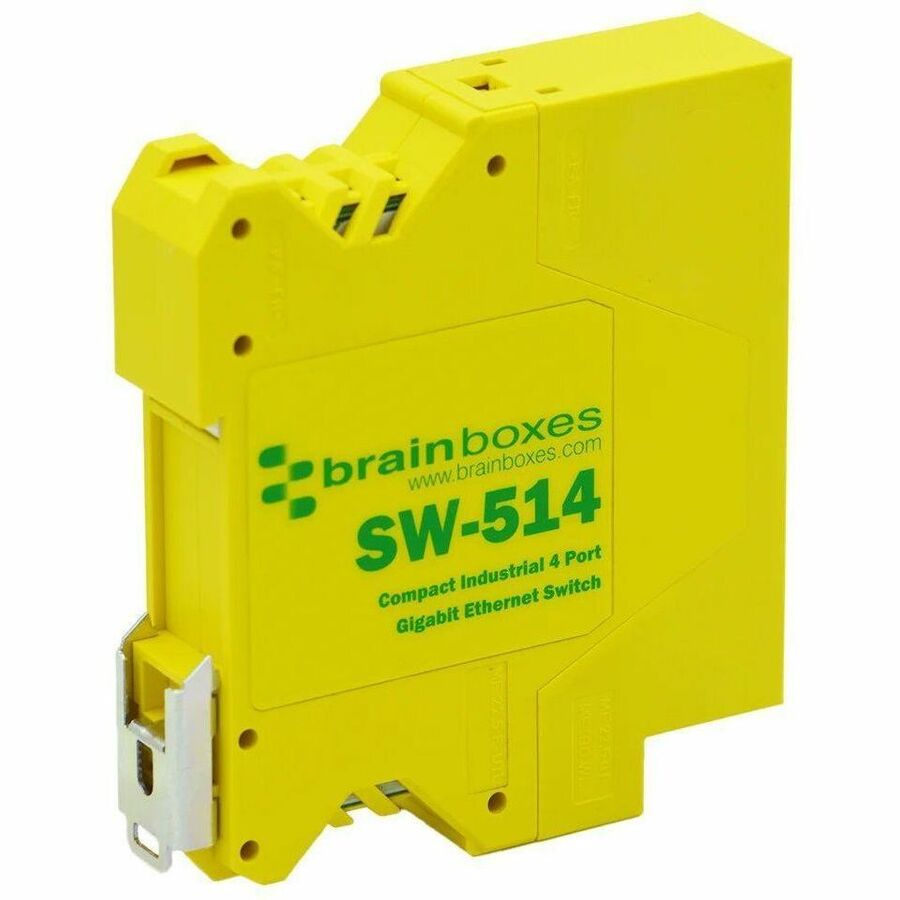

Industrial Gigabit Ethernet switch. Compact 4 port unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

Interfaces/Ports
Total Number of Network Ports:
4
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
4 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Input Voltage:
30 V DC
Power Source:
Power Supply
Power Consumption:
3.60 W
Physical Characteristics
Form Factor:
DIN Rail Mountable
Height:
3.9"
Width:
0.9"
Depth:
3.7"
Weight (Approximate):
3.95 oz
Miscellaneous
Package Contents:
  • Compact Industrial 4 Port Gigabit Ethernet Switch
  • Quick Start Guide
Application/Usage:
Industrial
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0837324004854
UPC: 837324004854
EAN: 0837324004854
UNSPSC: 43222612
