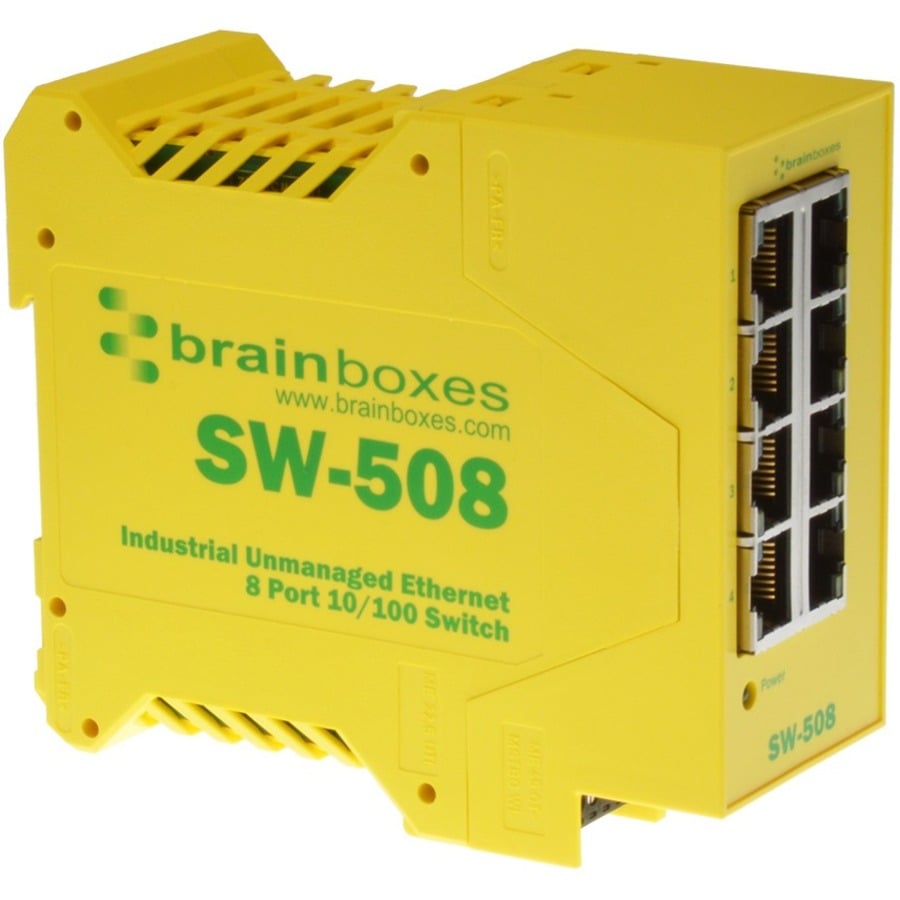

Brainboxes SW-508 Data Networking

Brainboxes - Brainboxes Industrial Ethernet 8 Port Switch DIN Rail Mountable, 8 Ports, Ethernet, 10/100Base-TX, TAA Compliant, 2 Layer Supported, Twisted Pair, Rail-mountable, Lifetime Limited Warranty
  • 8 Port Ethernet Switch
  • Integrated DIN Rail Mount
  • Redundant dual power inputs: +5V to +30V DC
  • Industrial operating temp range -40°C to +80°C / -40°F to +176°F
  • No software required
  • Lifetime Warranty and Support
Read More

Need a different version? See all Brainboxes Parts Network/IP Video Surveillance Equipments

$167.86
In Stock
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Brainboxes SW-508 Data Networking
Brainboxes SW-508 Data Networking
Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview
Parts and products from Brainboxes.
Brainboxes SW-508 Data Networking Overview

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

More from the Manufacturer

Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
8 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Ethernet
Network Technology:
10/100Base-TX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Physical Characteristics
Form Factor:
Rail-mountable
Height:
4.5"
Width:
3.9"
Depth:
1.8"
Weight (Approximate):
5.64 oz
Miscellaneous
Package Contents:
  • Industrial Ethernet 8 Port Switch DIN Rail Mountable
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0837324003833, 0991428774980
UPC: 837324003833, 991428774980
EAN: 0837324003833, 0991428774980
UNSPSC: 43222612
