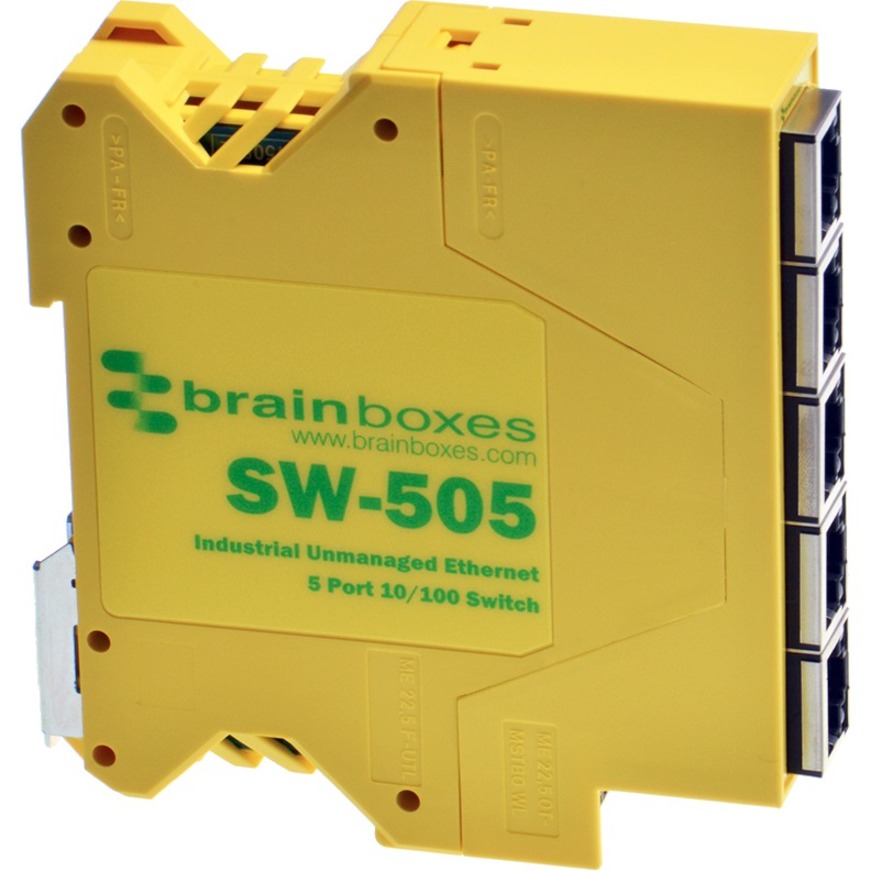

Brainboxes SW-505 Data Networking

Part Number: SW-505
Model: Parts
Add to My Shopping List Add to Compare
$101.77
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
5
Modular
No
Port/Expansion Slot Details
5 x Fast Ethernet Network
Media Type Supported
Twisted Pair

Product Description:

  Brainboxes Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable, 5 Ports, Fast Ethernet, 10/100Base-TX, TAA Compliant, 2 Layer Supported, Twisted Pair, Rail-mountable, Lifetime Limited Warranty
Explore all Brainboxes Parts Network/IP Video Surveillance Equipments
Add to Quote
Brainboxes SW-505 Data Networking
Brainboxes SW-505 Data Networking

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.
Brainboxes SW-505 Data Networking Overview

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.

More from the Manufacturer

Interfaces/Ports
Total Number of Network Ports:
5
Modular:
No
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-TX
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
  • Power Adapter
  • USB
Physical Characteristics
Form Factor:
Rail-mountable
Height:
0.9"
Width:
3.7"
Depth:
3.9"
Weight (Approximate):
4.06 oz
Miscellaneous
Package Contents:
  • Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable
  • Quick Start Guide
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0818214955142, 0837324003895
UPC: 818214955142, 837324003895
EAN: 0818214955142, 0837324003895
UNSPSC: 43222612
