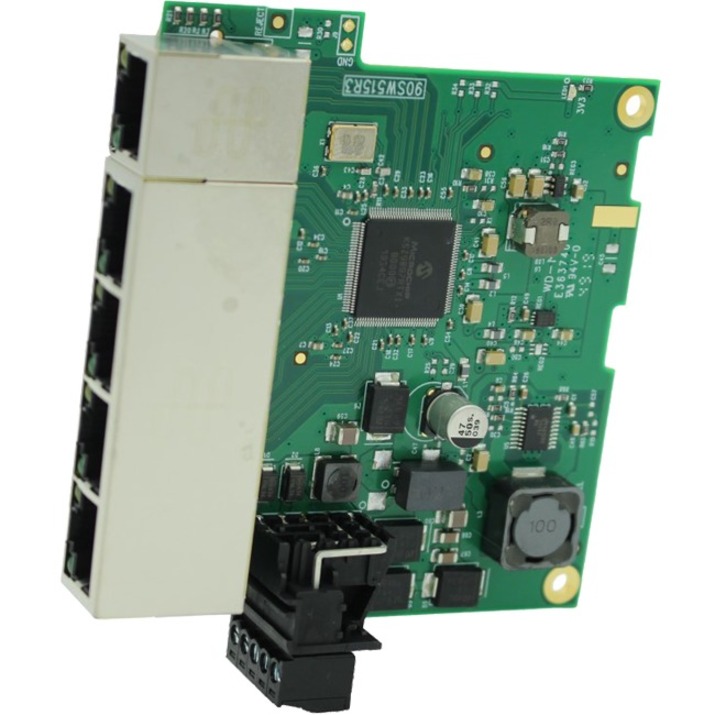

Brainboxes SW-115 Data Networking

Brainboxes  -  Brainboxes Embedded Industrial 5 Port Gigabit Ethernet Switch, 5 Ports, TAA Compliant, 2 Layer Supported, Twisted Pair, Lifetime Limited Warranty

  • 5 Port Gigabit Ethernet Switch
  • Ready for embedded applications
  • Redundant dual power inputs: +5V to +30V DC
  • Industrial operating temp range -40°C to +80°C / -40°F to +176°F
  • Lifetime Warranty and Support
Read More
Need a different version? See all Brainboxes Parts Network/IP Video Surveillance Equipments

Price Match Guarantee

Found a better price? We'll match it within 30 days of your purchase.

Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
$170.52
In Stock
Brainboxes SW-115 Data Networking
Brainboxes SW-115 Data Networking

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.
Brainboxes SW-115 Data Networking Overview

Industrial 5 Port Gigabit unmanaged Ethernet switch. Galvanically Isolated Ethernet Ports capable of 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

Interfaces/Ports
Total Number of Network Ports:
5
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
5 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Physical Characteristics
Height:
0.8"
Width:
3.5"
Depth:
3.7"
Weight (Approximate):
2.68 oz
Miscellaneous
Package Contents:
  • Embedded Industrial 5 Port Gigabit Ethernet Switch
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0837324004304
UPC: 837324004304
EAN: 0837324004304
UNSPSC: 43222612
