Brainboxes SW-114 Ethernet Switch

Part Number: SW-114
Model: Parts
Add to My Shopping List Add to Compare
$107.09
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
4
Network (RJ-45)
Yes
Port/Expansion Slot Details
4 x Gigabit Ethernet Network
Media Type Supported
Twisted Pair

Product Description:

  Brainboxes 4 PORT ETHERNET GIGABIT SWITCH INDUSTRIAL TEMP -40F + 176F
Explore all Brainboxes Parts Network/IP Video Surveillance Equipments
Add to Quote
Brainboxes SW-114 Ethernet Switch
Brainboxes SW-114 Ethernet Switch

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.
Brainboxes SW-114 Ethernet Switch Overview

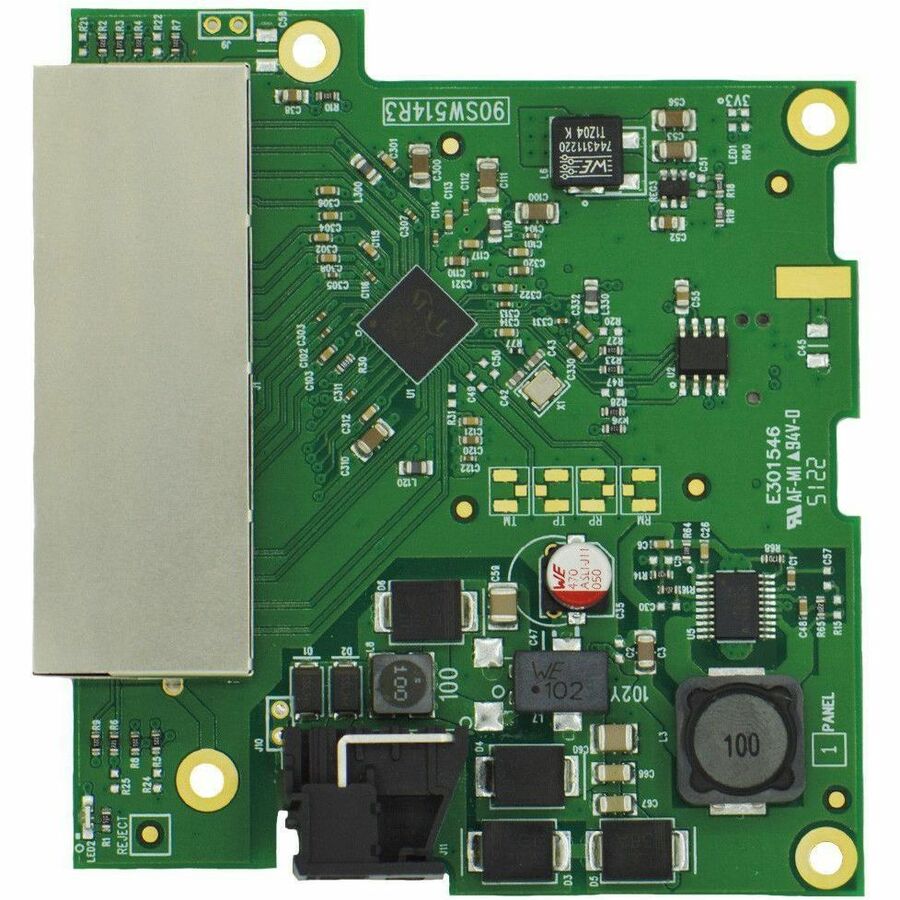

Embedded industrial 4 port Gigabit Ethernet unmanaged switch. Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

Interfaces/Ports
Total Number of Network Ports:
4
Network (RJ-45):
Yes
Port/Expansion Slot Details:
4 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Input Voltage:
  • 5 V DC
  • 30 V DC
Power Source:
DC
Redundant Power Supply Supported:
Yes
Power Consumption:
3.60 W
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.9"
Width:
6.3"
Depth:
5.3"
Weight (Approximate):
6.74 oz
Miscellaneous
Application/Usage:
Industrial
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Item Numbers
GTIN: 0837324004939
UPC: 837324004939
EAN: 0837324004939
UNSPSC: 43222612
