Brainboxes SW-108 Data Networking

Part Number: SW-108
Model: Parts
Add to My Shopping List Add to Compare
$143.69
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Network Ports
8
Uplink Port
No
Modular
No
Stack Port
No

Product Description:

  Brainboxes Industrial Embeddable 8 Port Ethernet Switch, 8 Ports, TAA Compliant, 2 Layer Supported, Twisted Pair, Lifetime Limited Warranty
Explore all Brainboxes Parts Network/IP Video Surveillance Equipments
Add to Quote
Brainboxes SW-108 Data Networking
Brainboxes SW-108 Data Networking

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.
Brainboxes SW-108 Data Networking Overview

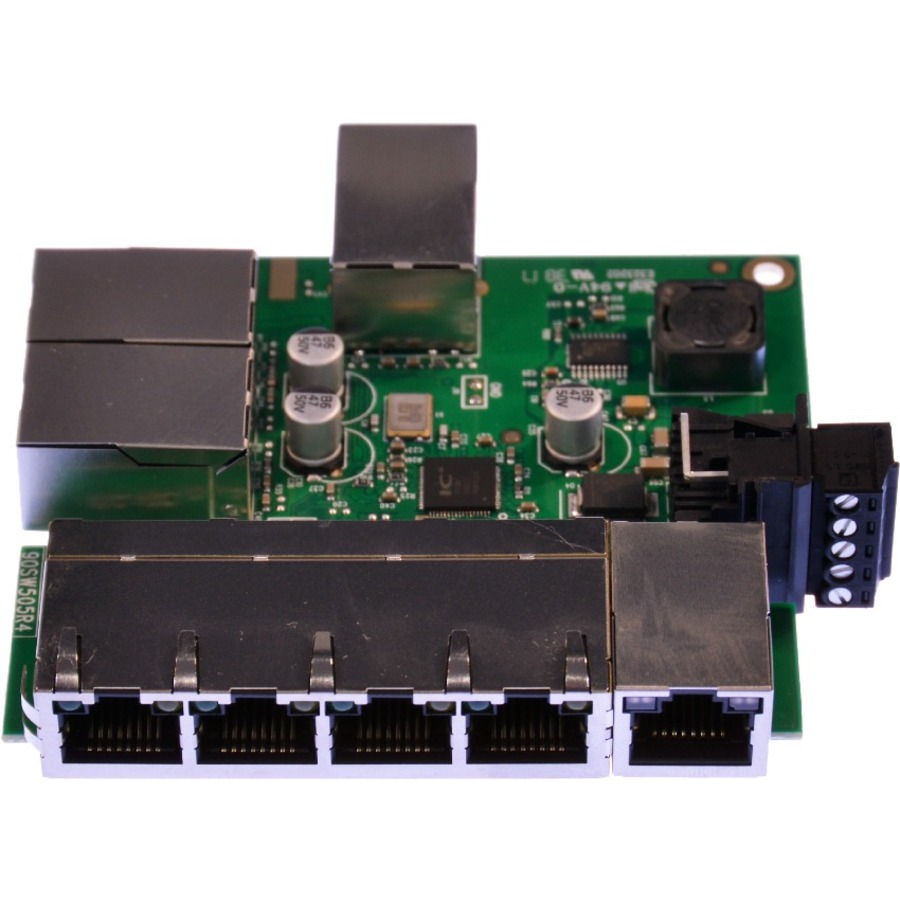

Industrial Ethernet 8 Port unmanaged switch. Galvanically Isolated Ports. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.

Interfaces/Ports
Total Number of Network Ports:
8
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
8 x Fast Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
  • USB
  • Power Supply
Physical Characteristics
Height:
0.8"
Width:
3.7"
Depth:
3.5"
Weight (Approximate):
3.10 oz
Miscellaneous
Package Contents:
  • Industrial Embeddable 8 Port Ethernet Switch
  • Quick Start Guide
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0818242839452, 0818243038656, 0837324004151
UPC: 818242839452, 818243038656, 837324004151
EAN: 0818242839452, 0818243038656, 0837324004151
UNSPSC: 43222612
