Total Number of Network Ports:
5
Uplink Port:
No
Modular:
No
Stack Port:
No
Port/Expansion Slot Details:
5 x Fast Ethernet Network
Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview
Parts and products from Brainboxes.
Brainboxes SW-105 Data Networking Overview

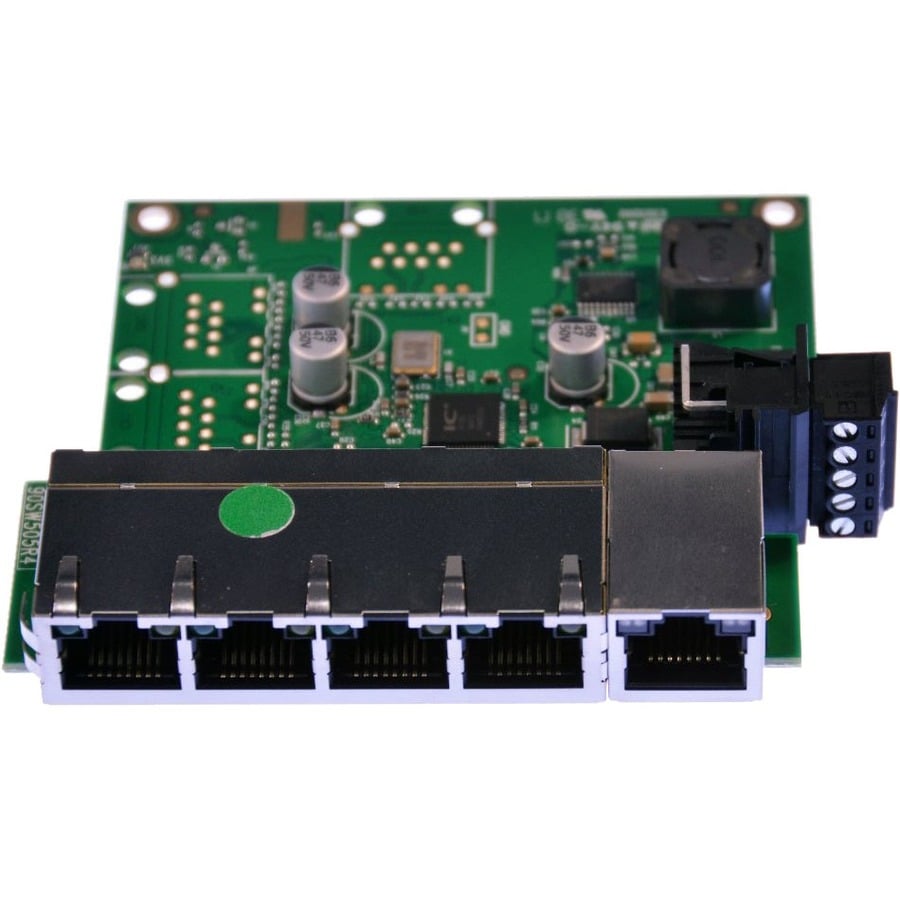

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Interfaces/Ports
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Fast Ethernet
Network Technology:
10/100Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
- USB
- Power Supply
Physical Characteristics
Height:
0.8"
Width:
3.7"
Depth:
3.5"
Weight (Approximate):
2.40 oz
Miscellaneous
Package Contents:
- Industrial Embeddable 5 Port Ethernet Switch
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
- WEEE
- RoHS
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0818213949791, 0818214948229, 0818242885503, 0837324004168
UPC:
818213949791, 818214948229, 818242885503, 837324004168
EAN:
0818213949791, 0818214948229, 0818242885503, 0837324004168
UNSPSC:
43222612
