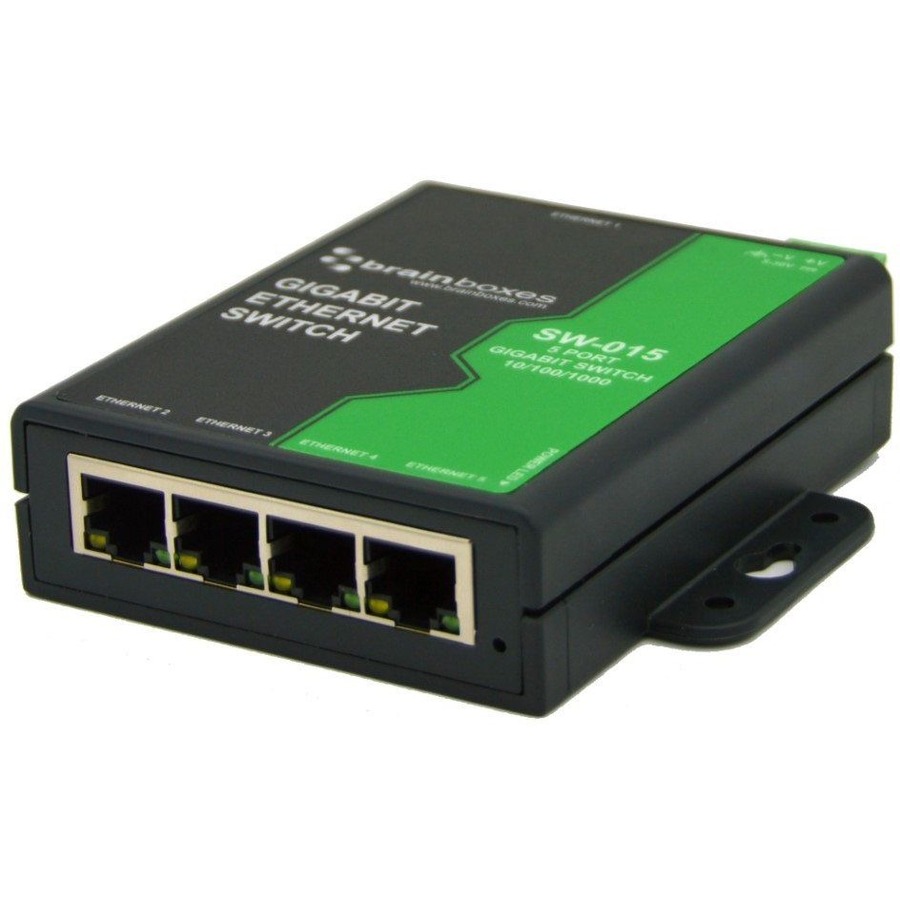

Brainboxes SW-015 Data Networking

Brainboxes - Brainboxes Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable, 5 Ports, 2 Layer Supported, 3.60 W Power Consumption, Twisted Pair, DIN Rail Mountable, Wall Mountable, Lifetime Limited Warranty
  • 5 Gigabit Ethernet ports
  • Wide voltage input range: +5V to +30V DC - can be powered by a variety of sources
  • Wide operating temperature range: -10ºC to +60ºC/-14ºF to +140ºF
  • Bi-directional data flow at super-fast speed
  • Small Footprint Case, only 23mm wide, 94mm deep
Read More
$101.17
In Stock
Add to Quote
Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview
Parts and products from Brainboxes.
Brainboxes SW-015 Data Networking Overview
Compact 5 port Gigabit Ethernet unmanaged switch.

With data transmission at 1000 Mbs per second; the Gigabit standard provides simultaneous sending and receiving of data at a speed 10 times faster than Fast Ethernet.

Backwards compatible; the SW-015 can plug into older networks, and connect to devices that are 10Mbs, Fast Ethernet (100Mbs) or Gigabit, whilst detecting the highest common speed between both ends of the connection.

As with all Ethernet Switches in the SW range - the SW-015 can be powered from +5VDC to +30VDC, and has a wide operating temperature range (-10ºC to +60ºC /-14ºF to +140ºF)

Connection monitoring automatically powers down devices when not in use for optimum energy efficiency.

Interfaces/Ports
Total Number of Network Ports:
5
Port/Expansion Slot Details:
5 x Gigabit Ethernet Network
Media & Performance
Media Type Supported:
Twisted Pair
Ethernet Technology:
Gigabit Ethernet
Network Technology:
10/100/1000Base-T
Network & Communication
Layer Supported:
2
Management & Protocols
Manageable:
No
Power Description
Power Source:
Power Supply
Redundant Power Supply Supported:
Yes
Power Consumption:
3.60 W
Physical Characteristics
Form Factor:
  • DIN Rail Mountable
  • Wall Mountable
Height:
1"
Width:
4.2"
Depth:
4"
Weight (Approximate):
4.55 oz
Miscellaneous
Package Contents:
  • Compact 5 Port Gigabit Ethernet Switch DIN Rail Mountable
  • Quick Start Guide
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Country of Origin:
United Kingdom
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0837324004366
UPC: 837324004366
EAN: 0837324004366
UNSPSC: 43222612
