Brainboxes PX-279 Network Switch

Brainboxes - Brainboxes 8 Port RS232 PCI Express Serial Card 9 Pin Connectors, PCI Express x1, 8 x DB-9 RS-232, Serial, Via Cable, Plug-in Card, TAA Compliant

8 Port RS-232 Serial Card
PCI Express PCIe Card
Includes 8 port cable DB9 connection
Data rate from 110 to 921,600 baud
Drivers for all popular operating systems including Windows 10,8,7, XP and 2000
Lifetime Warranty and Support

Need a different version? See all Brainboxes Parts Network/IP Video Surveillance Equipments

$712.45

Chat Now for Qty Discount

Add to Quote

Overview

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.

Brainboxes PX-279 Network Switch Overview

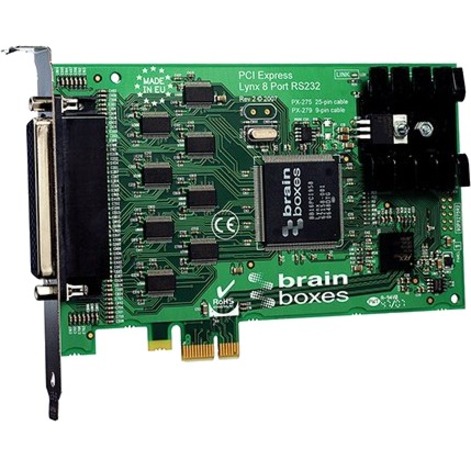

PCI Express Card providing eight RS232 serial ports connected using 9 pin cables. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10.

Detailed Specs

Technical Information

Host Interface:

PCI Express x1

Maximum Data Transfer Rate:

7.20 Mbit/s

Platform Supported:

Interfaces/Ports

Ports Expandability:

8 x DB-9 RS-232 - Serial, Via Cable

Physical Characteristics

Form Factor:

Plug-in Card

Height:

4.7"

Width:

0.7"

Thickness:

6.5"

Weight (Approximate):

4.23 oz

Miscellaneous

Package Contents:

8 Port RS232 PCI Express Serial Card 9 Pin Connectors
Installation CD Including Manual
Microsoft Signed Drivers & Utilities

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Country of Origin:

United Kingdom

TAA Compliant:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0837324000825

UPC: 837324000825

EAN: 0837324000825

UNSPSC: 43201407
