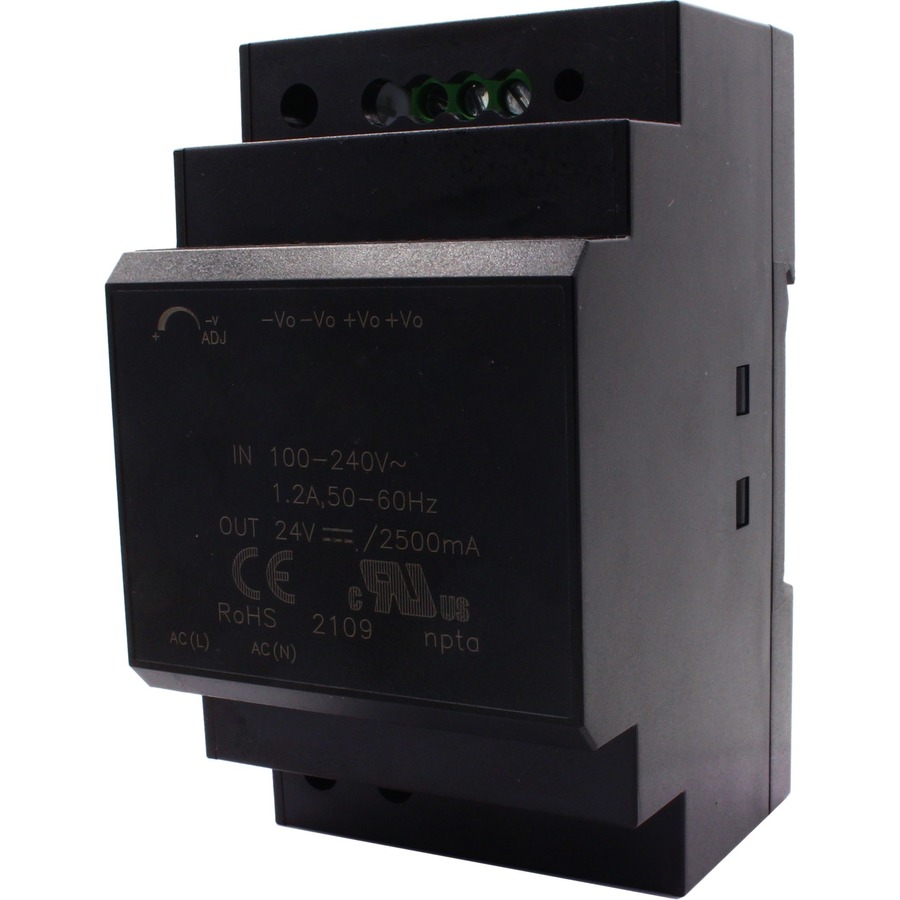

Brainboxes - Brainboxes 60W Single Output Industrial DIN Power Supply, DIN Rail, 120 V AC, 230 V AC Input, 24 V DC Output, 60 W, 85% Efficiency

Power Supply offers maximum power productivity with added dependability
Delivers 24 V DC to ensure that your device is always ready to use
The 60 W output power reduces fan noise

Need a different version? See all Brainboxes Parts Network/IP Video Surveillance Equipments

$90.20

Chat Now for Qty Discount

Add to Quote

Overview

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.

Brainboxes PW-245 Data Networking Overview

Universal 85-264VAC or 120-370VDC input Voltage
Operating temperature range: -40ºC to +70ºC/-40ºF to 158ºF
High I/O isolation test Voltage up to 4000VAC
Over-voltage class III (Designed to meet EN61558-1 safety standards)
Low standby power consumption, high efficiency
Output short circuit, over-current, over-Voltage protection

Featuring a cost-effective, energy efficient solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise, compliant with international standards for EMC and safety meeting IEC/EN61000-4, CISPR32, EN55032, UL62368, IEC62368 and EN62368. These light weight AC-DC converters also have an extremely compact design for space saving and are ideal for applications such as industrial control equipment machinery and all kinds of applications in a harsh environment.

Detailed Specs

Technical Information

Efficiency:

85%

Power Description

Input Voltage:

120 V AC
230 V AC

Output Voltage:

24 V DC

Output Power:

60 W

Physical Characteristics

Form Factor:

DIN Rail

Height:

5.2"

Width:

3.5"

Depth:

2.5"

Weight (Approximate):

8.04 oz

Miscellaneous

Environmentally Friendly:

Yes

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0837324004755

UPC: 837324004755

EAN: 0837324004755

UNSPSC: 39121004
