Brainboxes ES-511 Data Networking
Part Number:
ES-511
Model:
Parts
Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview
Parts and products from Brainboxes.

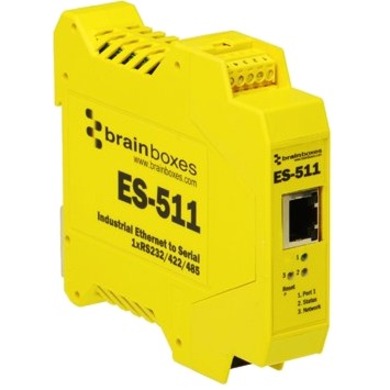

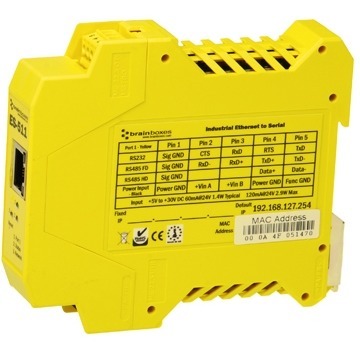

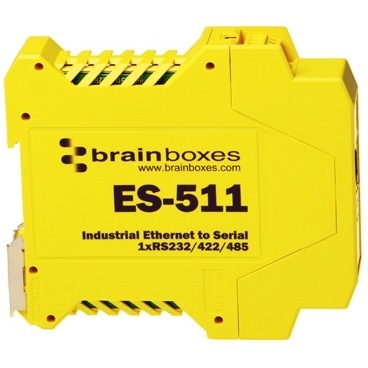

Brainboxes ES-511 Data Networking Overview
Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-511 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount.
Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments.
Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Technical Information
Interfaces/Ports
Number of Serial Ports (External):
1
Physical Characteristics
Form Factor:
DIN Rail Mountable
Height:
0.9"
Width:
4.1"
Depth:
4.5"
Weight (Approximate):
3.63 oz
Miscellaneous
Package Contents:
- Industrial Ethernet to Serial 1xRS232/422/485
- Installation CD Including Manual
- Microsoft Signed Drivers & Utilities
- Quick Start Guide
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0186860082933, 0837324002607
UPC:
186860082933, 837324002607
EAN:
0186860082933, 0837324002607
UNSPSC:
43201559
