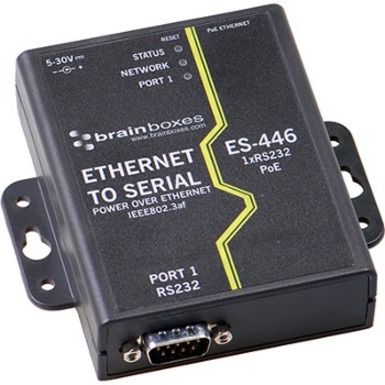

Brainboxes ES-446 Data Networking

Brainboxes - Brainboxes 1 Port RS232 PoE Ethernet to Serial Adapter, DIN Rail Mountable, PC, 1 x Number of Serial Ports External, TAA Compliant

1 Port RS-232 with Power over Ethernet IEEE802.3af
Ethernet to Serial Device Server
Data rate from 110 to 1,000,000 baud (1 MegaBaud)
Install Virtual Com ports or use the Software APIs for Visual Basic, C# and more
Serial Port Tunnelling allows serial cable replacement over any distance, no software required
Optional DIN rail mounting kit and stand alone power supply

Need a different version? See all Brainboxes Parts Network/IP Video Surveillance Equipments

$204.85

In Stock

Chat Now for Qty Discount

Add to Quote

Overview

Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview

Parts and products from Brainboxes.

Brainboxes ES-446 Data Networking Overview

Ethernet to Serial device server with Power over Ethernet providing access to one RS232 serial port. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230, 921,600 or user definable non standard values. Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch.

Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.

For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.

Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
