Brainboxes ES-320 Data Networking
Part Number:
ES-320
Model:
Parts
Brainboxes Parts Network/IP Video Surveillance Equipment Model Overview
Parts and products from Brainboxes.

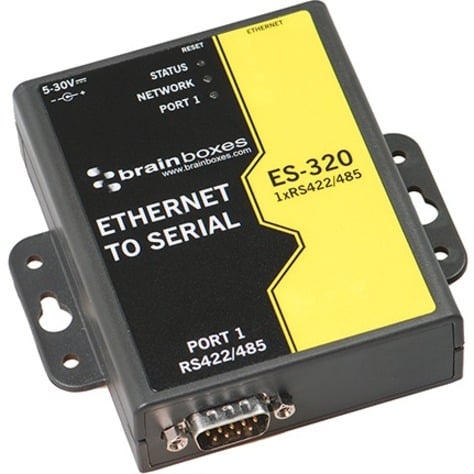

Brainboxes ES-320 Data Networking Overview
Ethernet to Serial device server providing access to one RS422/485 serial port. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Technical Information
Interfaces/Ports
Number of Serial Ports (External):
1
Physical Characteristics
Form Factor:
DIN Rail Mountable
Height:
1.1"
Width:
4.1"
Depth:
4.2"
Weight (Approximate):
4.27 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
United Kingdom
TAA Compliant:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0029682728651, 0818240061275, 0837324002300
UPC:
029682728651, 818240061275, 837324002300
EAN:
0029682728651, 0818240061275, 0837324002300
UNSPSC:
43201559
