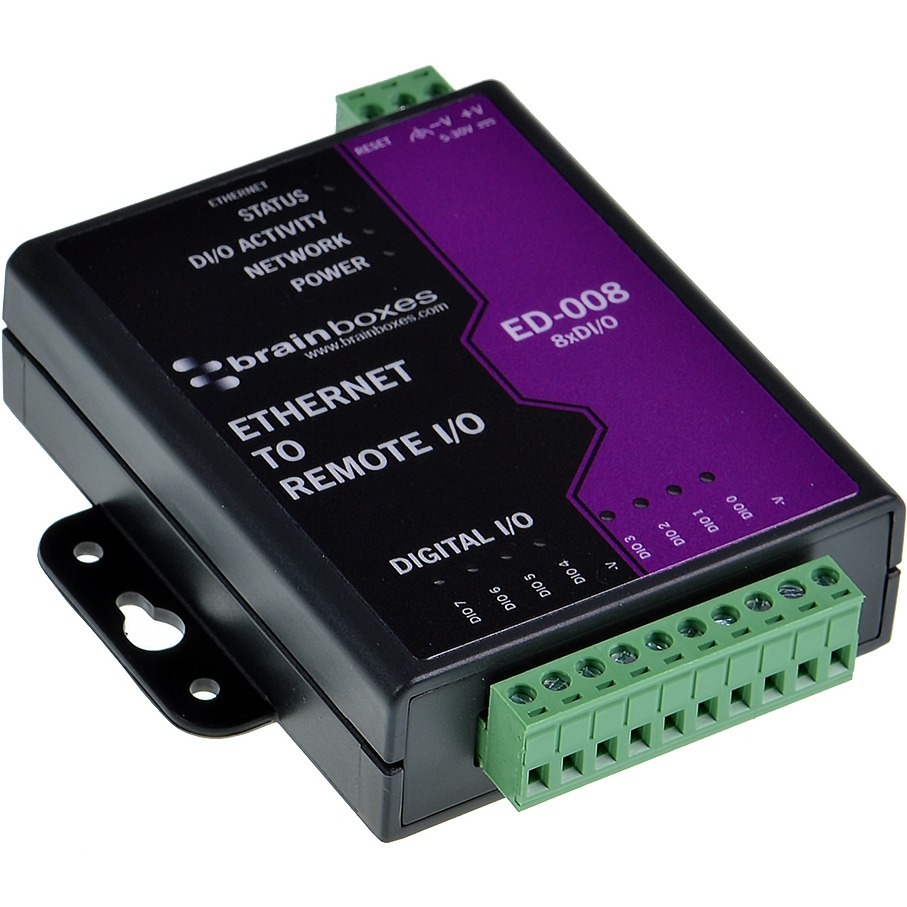

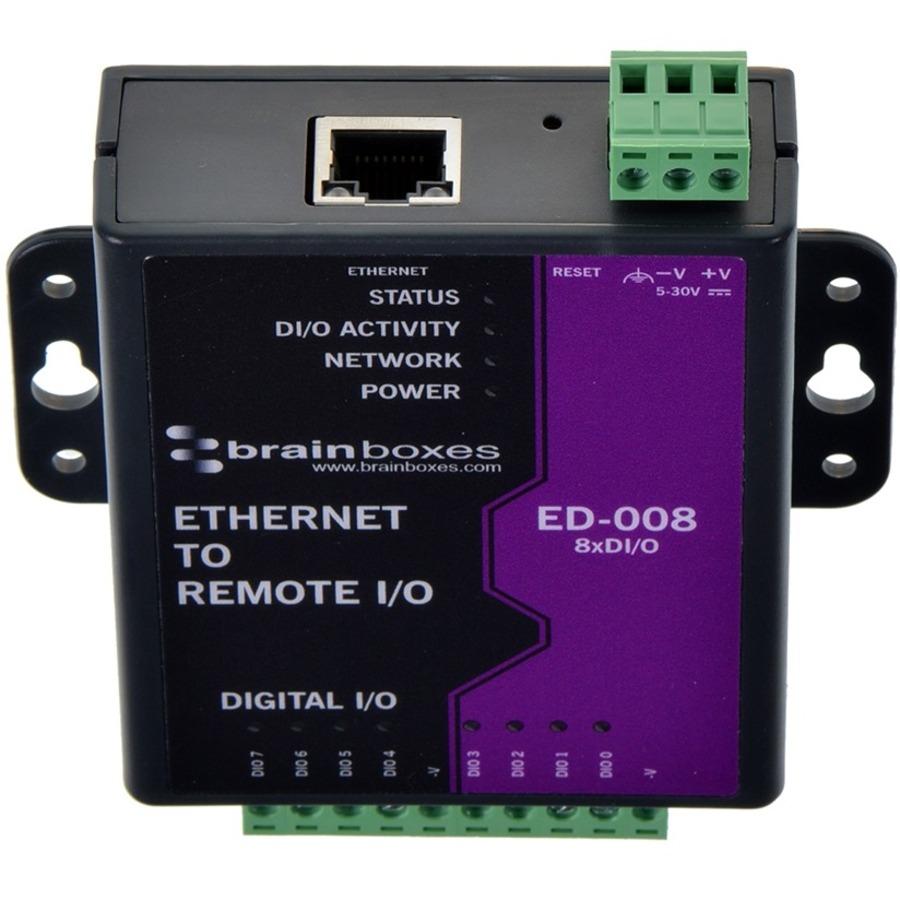

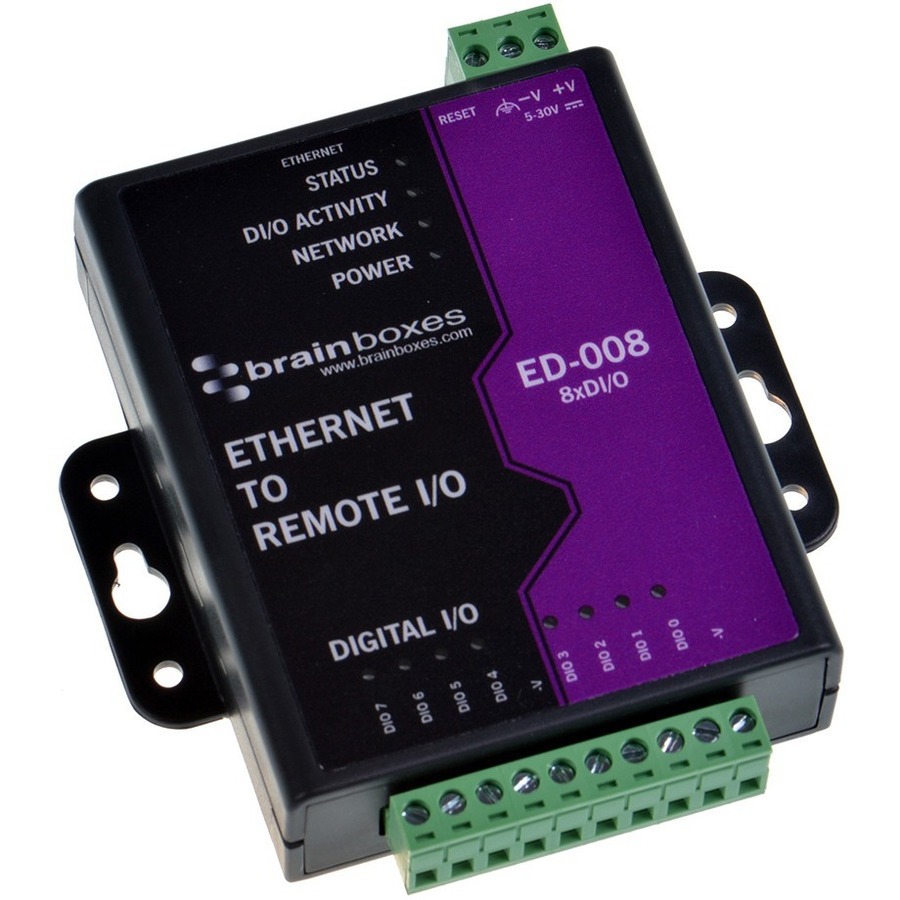

Brainboxes ED-008 Data Networking Overview
Ethernet to DIO device: 8 digital input/output channels. Powerful ARM 80 MHz, 32 Bit CPU. Offers robust and intelligent 'control side' devices that provide the interface to systems on the 24V factory floor environment, commonly referred to as 'process side'. The device installs as a COM Port on the PC to give complete backwards compatibility essential for legacy applications.
Typical applications are control and switching of AC and DC motors, Fans, relay drivers, pumps, Voltage Regulators and Battery Chargers, LEDs and Bulbs, Air Conditioning, Heaters and Solenoids..
More from the Manufacturer
Physical Characteristics
Weight (Approximate):
4.48 oz
Miscellaneous
Package Contents:
Ethernet to 8 Digital IO Lines Installation CD Including Manual, Microsoft Signed Drivers & Utilities Quick Start Guide
Additional Information:
IO Channels
IO Protocols Modbus TCP or DCON ASCII (over TCP or Virtual COM port) Description 8 Digital Inputs/Outputs Digital Inputs 8 Digital Outputs 8 Analog Inputs 0 Analog Outputs 0 Watchdog When device comms is lost, outputs can be set to predetermined state Power On Values Outputs can be set to predetermined values on power on Safe Values When Input triggered, outputs can be automatically set to predetermined value Digital IO Input Logic Level 0 -30.0V to +1.0V Input Logic Level 1 +2.0V to +30V Input Latches Triggered by user programmable positive or negative edges, stays true until acknowledged Input Counter User progammable- counts positive or negative transitions up to 200Hz Digital Output Type Open drain transistor, protected MosFET. Short circuit protection up to 36V. Over temperature shutdown -175°C typical 150°C min Maximum Output Load Voltage 30 VDC Maximum Output Current Sink 0.85A per channel Serial Port
Serial Gateway No Protocol RS232 Network
Number of Ports 1 Network Port Type RJ45 Jack 10/100 MHz Autosensing, Cross Over Autosensing (MDIX) Network Protocols ICMP, IP, TCP, DHCP, HTTP Protection 1500V Magnetic Isolation between ports and network Power
Power Input 5V - 30V DC input, reverse polarity protected Power Supply 1 Description Global Power Supply - PW-600 Power Supply 2 Description Power supply PW-650 Max Input 35 Volts General
Operating Temperature Range 0 °C to +60 °C / 32 °F to +140 °F Industrial Standard No Storage Temperature 0 °C to +70 °C / +32 °F to +158 °F Galvanic Isolation No Operating Systems
Microsoft Windows 10 Suitable for any device with a Web Browser Microsoft Windows 8 32 bit & 64 bit Editions Raspberry Pi Android Microsoft Windows 7 32 bit & 64 bit Editions iOS Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Mac OS X Windows XP 32 bit & 64 bit Editions Linux
Country of Origin:
United Kingdom
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0837324009811
UPC:
837324009811
EAN:
0837324009811
UNSPSC:
43222625
