Number of Channels:
2
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

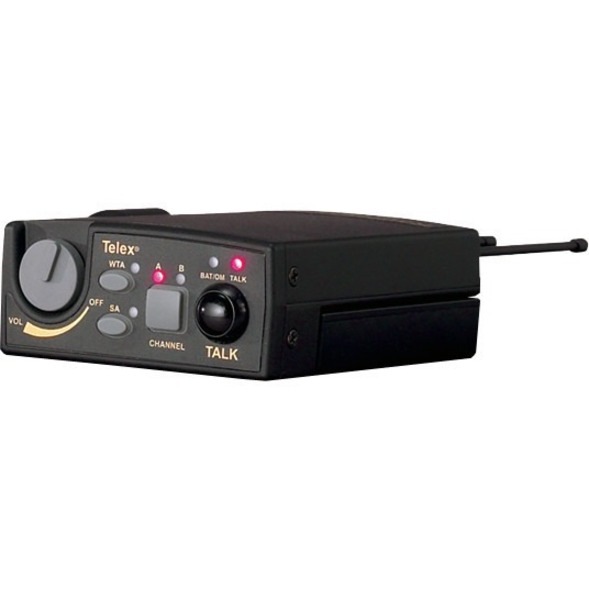

Bosch TR-800-E88R Security System Products Overview
On/Off & Volume Control
Turns the beltpack power on and controls head set volume.
Wireless Talk Around (WTA)
When pressed, the user's audio is disconnected from the wired intercom, auxiliary input/output and the base station's local headset. Other beltpack users, on that audio channel, can hear the user as normal.
Stage Announce (SA)
When pressed, the user's audio is routed to the stage announce connector on the back of the base station. The user also loses their sidetone as an indication that stage announce is activated. The other wireless beltpacks and wired users do not hear the user's audio. The button is non-latching and activates the nearby red LED.
Audio Channel Select Button
Allows user to select either audio channel A or B.
Bat/Overmod Light (BAT/OM)
Light will flash once when unit is turned on if the battery is good. If the light stays on, battery is low. If the light does not flash, battery is dead. A normal microphone gain setting will cause the LED to flash at the beginning of most words at normal speech levels. If the gain is too high, the LED will be red during the complete word at normal speech levels.
Talk Light
LED is on when the talk button, SA or WTA is active.
Talk Button
Press to enable the audio path from the local headset microphone. The "TALK" LED, #6, will turn red when enabled. A quick press and release latches the talk function, unless latching has been disabled. Holding the button for over ½ a second will cause the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again will turn it off.
Turns the beltpack power on and controls head set volume.
Wireless Talk Around (WTA)
When pressed, the user's audio is disconnected from the wired intercom, auxiliary input/output and the base station's local headset. Other beltpack users, on that audio channel, can hear the user as normal.
Stage Announce (SA)
When pressed, the user's audio is routed to the stage announce connector on the back of the base station. The user also loses their sidetone as an indication that stage announce is activated. The other wireless beltpacks and wired users do not hear the user's audio. The button is non-latching and activates the nearby red LED.
Audio Channel Select Button
Allows user to select either audio channel A or B.
Bat/Overmod Light (BAT/OM)
Light will flash once when unit is turned on if the battery is good. If the light stays on, battery is low. If the light does not flash, battery is dead. A normal microphone gain setting will cause the LED to flash at the beginning of most words at normal speech levels. If the gain is too high, the LED will be red during the complete word at normal speech levels.
Talk Light
LED is on when the talk button, SA or WTA is active.
Talk Button
Press to enable the audio path from the local headset microphone. The "TALK" LED, #6, will turn red when enabled. A quick press and release latches the talk function, unless latching has been disabled. Holding the button for over ½ a second will cause the audio path to be enabled only for as long as the button is held. If the talk function is latched on, pressing the talk button again will turn it off.
Technical Information
Network & Communication
Connectivity Technology:
Wireless
Power Description
Power Source:
Battery
Battery Information
Number of Batteries Supported:
6
Battery Size Supported:
AA
Physical Characteristics
Product Color:
Black
Form Factor:
Beltpack
Height:
5.1"
Width:
3.8"
Depth:
1.7"
Weight (Approximate):
16 oz
Miscellaneous
Package Contents:
- TR-800 UHF Two-Channel Wireless Beltpack
- Antenna
Additional Information:
- Binaural: No
- Current Draw: 140 mA Push-to-Talk, Talk On
- Distortion: < 1 % at full deviation
- Frequency Response: 300 Hz-8 kHz
- Function: User Station
- IF Selectivity: 3 dB at 230 kHz
- Image Rejection: 70 dB or better
- Local Headset Output: 40 mW output into 600W 1% distortion
- Microphone Input Sensitivity: 7 mV
- RF Frequency Range: 470 - 608 MHz, 614 - 740 MHz in 18 MHz TX and RX bands
- RF Frequency Stability: 0.01 %
- RF Sensitivity: < 0.7 µV for 12 dB SINAD
- Squelch Quieting: 90 dB
- Squelch Threshold: 20 dB SINAD About 1.0 µV
- Type: Dual Conversion Super heterodyne, Synthesized, FM, 712 channels
- A4F Headset Jack
Certifications & Standards:
FCC
Item Numbers
UNSPSC:
43221525
Get help from a Barcoding Expert!
The Bosch TR-800-E88R Security System Products is also known as
BOS-TR800E88R
