Bosch TC8235GIT Accessory

Part Number: TC8235GIT
Model: Accessories
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$191.80

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Input Receptacle Type
BNC
Input Receptacle Detail
1 x BNC
Output Receptacle Type
BNC
Output Receptacle Detail
1 x BNC

Product Description:

  Ground Loop Isolation Transfor
Explore all Bosch Accessories Accessories
Add to Quote
Bosch TC8235GIT Accessory
Bosch TC8235GIT Accessory
Bosch TC8235GIT Accessory
Bosch TC8235GIT Accessory Bosch TC8235GIT Accessory Bosch TC8235GIT Accessory

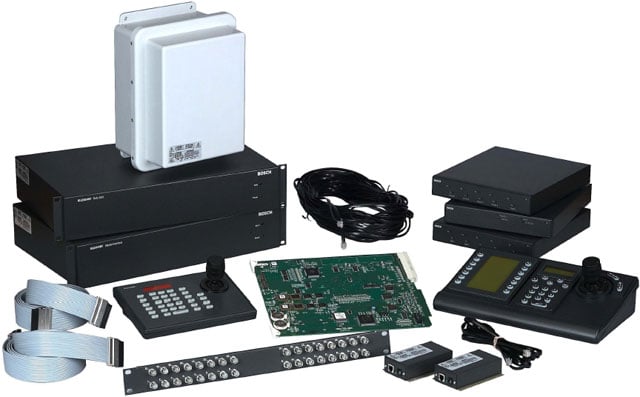

Bosch Accessories Accessory Model Overview

Enhance the operation of your Bosch product with the addition of genuine Bosch Parts.

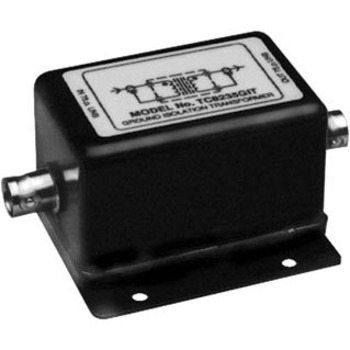

Bosch TC8235GIT Accessory Overview
The TC8235GIT is a one-to-one isolation transformer for 75 Ohm coax video/data lines. These units are designed to eliminate the effects of power line and spurious noise potentials between ground points on transmitted signals.
Technical Information
Input Receptacle Type:
BNC
Input Receptacle Detail:
1 x BNC
Output Receptacle Type:
BNC
Output Receptacle Detail:
1 x BNC
Physical Characteristics
Product Color:
Black
Height:
1.6"
Width:
1.7"
Depth:
3.5"
Weight (Approximate):
7.87 oz
Miscellaneous
Additional Information:
  • Impedance Levels: 75 Ω unbalanced, input and output
  • Insertion Loss: 0.5 dB at 1 kHz
  • Return Loss: Better than 20 dB,120 Hz to 5 MHz
  • Amplitude: Flat loss is 0.45 dB maximum at 15 kHz, 3 dB down relative mid-frequency response at 10 Hz and 7 MHz
  • Phase: Linear with slope of 18°/MHz, 1 MHz to 5 MHz
  • Ground Isolation: En/Eo = 115 dB at 60 Hz (decreases with frequency at 6 dB/octave to 30 dB minimum at 1 MHz)
    • Compatibility:
    75 Ohm coax video/data lines
    Item Numbers
    GTIN: 0800549024310, 8717332333318
    UPC: 800549024310
    EAN: 0800549024310, 8717332333318
    UNSPSC: 39121029
