Bosch SFP-26B Products

Bosch - 100fx, 1550nm, 2km, SC, 1 Fibe PAIR W/ SFP-26A, MSA Compliant
  • SFP offers enhanced dependability with maximum productivity
  • With 100Base-FX technology, enjoy up to 100Mbps data transfer rate over optical fiber cable
  • Fast Ethernet technology - An ideal solution for extending network connections to conference rooms, labs, lobbies and department workgroups
  • Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
  • With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
  • SFP with data networking application/usage for maximum dependability and convenience
Read More
$274.22
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch SFP-26B Products Overview

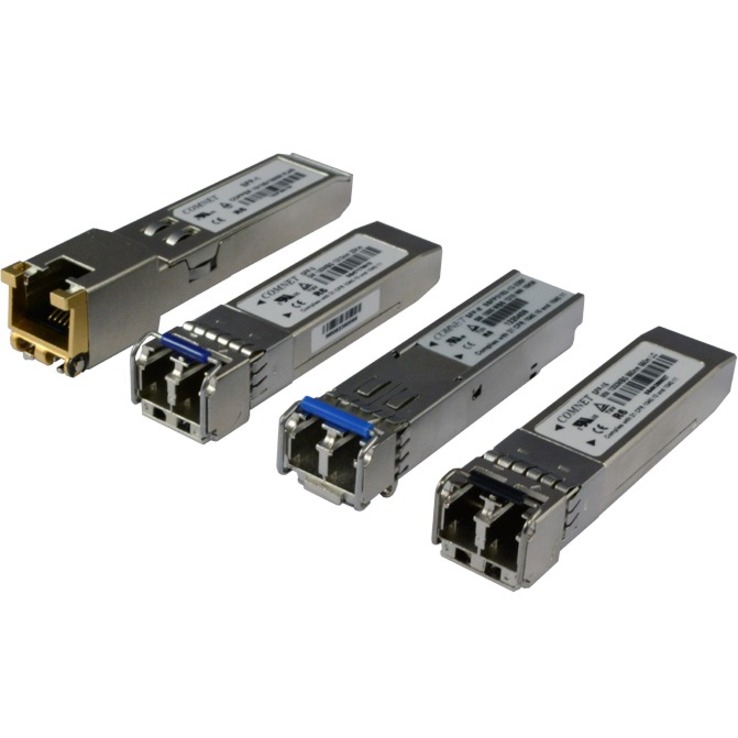

The ComNet selection of MSA Compliant Small Form-Factor Pluggable (SFP) modules allows for an optical or electrical interface when using a ComNet managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with copper media, multimode optical fiber, or single mode optical fiber. The optical fiber SFP modules are available in Fast Ethernet one and two fiber versions and Gigabit Ethernet one and two fiber versions. They also are available with LC or SC optical connectors. The ComNet SFP modules offer different wavelengths and optical power budget to allow distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments. A ComNet SFP interface is required for use with all ComNet SFP configurable products to qualify for the ComNet Lifetime Warranty.

Technical Information
Application/Usage:
  • Data Networking
  • Optical Network
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
SC
Interfaces/Ports Details:
1 x SC 100Base-FX Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Optic Cable Standard:
50/125 µm, 62.5/125 µm
Fiber Mode Supported:
Multi-mode
Ethernet Technology:
Fast Ethernet
Network Technology:
100Base-FX
Miscellaneous
Compatibility:
  • MSA Compliant
Comnet Products:
  • CNGE3FE7MS2
  • CNGE3FE7MS3
  • CNGE3FE7MS4
  • CNGE2FE8MSPOE
  • CNGE2FE8MSPOE2
  • CNGE2FE8MSPOE
  • CNGE2FE16MS
  • CNGE8FX4TX4MS
  • CNGE5MS
  • CNGE8MS
  • CNGE12MS
  • CNGE24MS
  • CWGE2FE8MSPOE
  • CWGE2FE24MODMS/8SFP
  • CWGE26FX2TX24MSPOE
  • CNFE8FX8US
  • CNFE8FX4TX4US
  • CNFE4FX2TX2US
  • CNFE4FX4US
  • FE2MC-B
  • CNFE2MC
  • CNMCSFP/M
  • CNMCSFP
  • CNMC2SFP
  • CWFESFPMCPOE30/M
  • CWFESFPMCPOE60/M
  • CNFESFPMCPOE30/M
  • CNFESFPMCPOE60/M
  • CNFE2MCPOE
  • CNFE2MC[AC]-M
  • CNFE22MC
  • CNFE2MC2C[/M]
  • CNMCSFPPOE/M
  • CNFE2DOE2
  • CNFE8TCOE
Item Numbers
UNSPSC: 43201553
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch SFP-26B Products is also known as CCN-SFP26B
