Application/Usage:
- Optical Network
- Data Networking
Bosch SFP-20A Products
Part Number:
SFP-20A
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch SFP-20A Products Overview

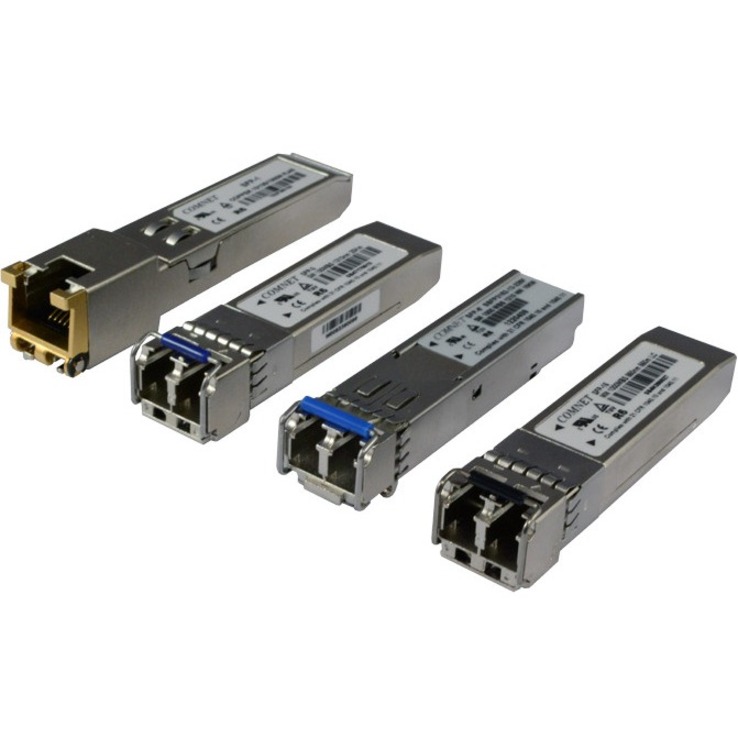

The ComNet selection of MSA Compliant Small Form-Factor Pluggable (SFP) modules allows for an optical or electrical interface when using a ComNet managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with copper media, multimode optical fiber, or single mode optical fiber. The optical fiber SFP modules are available in Fast Ethernet one and two fiber versions and Gigabit Ethernet one and two fiber versions. They also are available with LC or SC optical connectors. The ComNet SFP modules offer different wavelengths and optical power budget to allow distances from 300 meters to 120 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments. A ComNet SFP interface is required for use with all ComNet SFP configurable products to qualify for the ComNet Lifetime Warranty.
Technical Information
Interfaces/Ports
Total Number of Ports:
1
Connector Type:
LC
Interfaces/Ports Details:
1 x LC 100Base-FX Network
Media & Performance
Media Type Supported:
Optical Fiber
Fiber Optic Cable Standard:
- 50/125 µm
- 62.5/125 µm
Fiber Mode Supported:
Single-mode
Ethernet Technology:
Fast Ethernet
Network Technology:
100Base-FX
Maximum Distance Supported:
196850.39 ft
Maximum Data Transfer Rate:
100 Mbit/s
Miscellaneous
Compatibility:
- MSA Compliant
- CNGE3FE7MS2
- CNGE3FE7MS3
- CNGE3FE7MS4
- CNGE2FE8MSPOE
- CNGE2FE8MSPOE+
- CNGE2FE16MS
- CNGE8FX4TX4MS
- CNGE5MS
- CNGE8MS
- CNGE12MS
- CNGE20MS
- CNGE24MS
- CNGE2FE24MS
- CNGE2FE24MSPOE
- CNGE28FX4TX24MS
- CNGE28FX4TX24MSPOE
- CWGE2FE8MSPOE
- CWGE9MS
- CWGE2FE24MODMS/CHASSIS
- CWGE24MODMS
- CWGE24MS
- CWGE28FX4TX24MS
- CWGE26FX2TX24MSPOE
- CNGE2FE4SMS[POE]
- CNGE4US
- CNGE2MC
- CNGE2MC-M
- CNGE22MC
- CNMCSFP/M
- CNMCSFP
- CNMC2SFP
- CNGE2MCPOEM
- CNMCSFPPOE/M
- FVT/FVR40SFP
- FVT/FVR80SFP
- FVT/FVR40D2SFP
- FVT/FVR40D4SFP
- FVT/FVR80D2SFP
- FVT/FVR80D4SFP
- FVT/FVR80D8SFP
- FVT/FVR8SFP2R
- FVT/FVR8SFP2RD8
- FVT/FVR10D2I1C4E
- FVT/FVR20D2I1C4E
- FVT/FVR40D2I1C4E
Environmentally Friendly:
Yes
Environmental Certification:
- RoHS
- WEEE
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN:
0845770006872
UPC:
845770006872
EAN:
0845770006872
UNSPSC:
43201553
Get help from a Barcoding Expert!
The Bosch SFP-20A Products is also known as
CCN-SFP20A
