Bosch PVA-4R24 Security System Products

Bosch - PAVIRO Router, routing up to 24 zones from 2-500 Watt.

Need a different version? See all Bosch Parts Accessories

$2,004.00
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Bosch PVA-4R24 Security System Products
Bosch PVA-4R24 Security System Products
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch PVA-4R24 Security System Products Overview

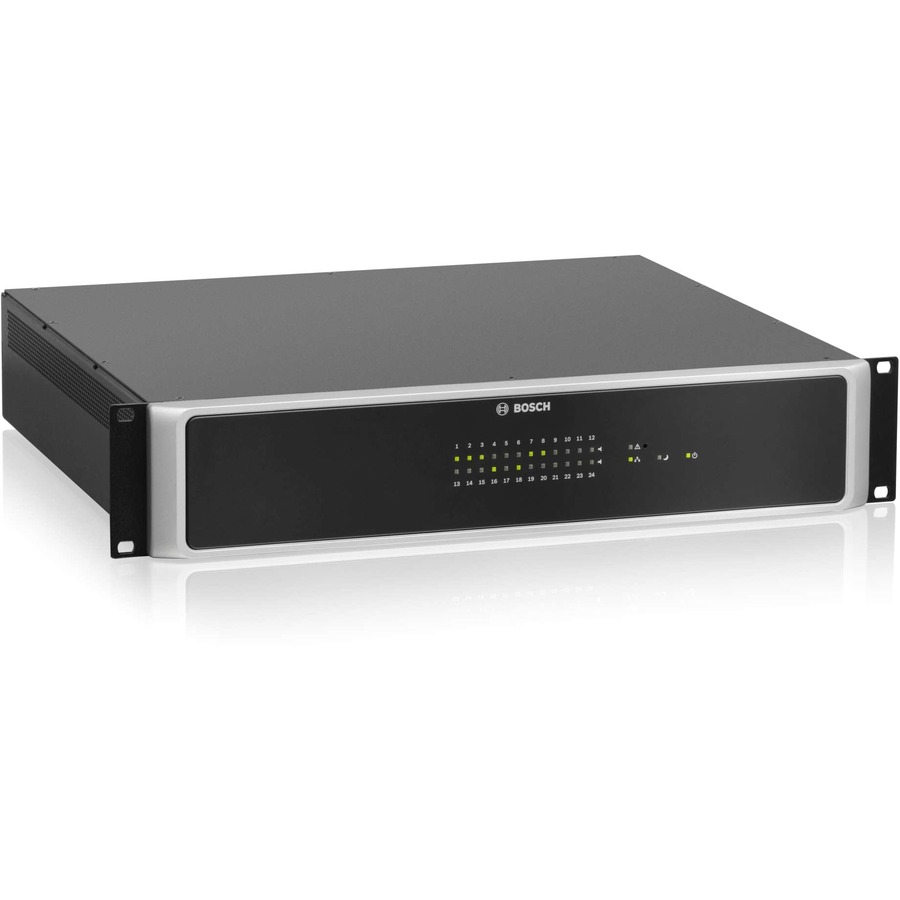

The PVA-4R24 24 Zone Router is a zone extension forthe PAVIRO system. It adds 24 zones, 20 GPIs, 24GPOs and 2 control relays to the system and iscontrolled and supervised via the CAN bus by the PVA-4CR12 (Controller). Up to 20 routers can be connected to one controller. One router can handle up to 4000 W speaker load. Themaximum load of one zone is 500 W. The zone indicator lights on the front indicate thecurrent status of every zone:

  • Green: Zone in use for non emergency purpose
  • Red: Zone in use for emergency purpose
  • Yellow: Zone fault detected
  • Off: Zone in idle condition
Physical Characteristics
Product Color:
  • Black
  • Silver
Form Factor:
  • Standalone
  • Rack-mountable
Height:
3.5"
Width:
19"
Depth:
15.4"
Weight (Approximate):
18.08 lb
Miscellaneous
Additional Information:

Electrical
Audio inputs (100 V) x AMP IN: 4 x 6-pin port
Max. voltage x 120 Veff
Max. current x 7.2 A
Max. power x 500 W
Audio outputs (100 V) x SPEAKER OUT: 4 x 12-pin port
Max. voltage x 120 Veff
Max. current x 7.2 A
Max. power x 500 W
CONTROL IN x 4 x 10-pin port
Control inputs x 10 supervised inputs (0-24 V, Umax = 32 V) 10 isolated inputs(Low: U ? 5 V DC; High: U ? 10 V DC, Umax = 32 V)
CONTROL OUT x 4 x 10-pin port
Control outputs x 24 Low Power outputs (open collector, Umax = 32 V, Imax = 40 mA)
Control relay x 2 (NO/NC relay contacts, Umax = 32 V, Imax= 1 A)
Interfaces
CAN BUS port x 2 x RJ-45, 10 to 500 kbit/s (for controller, router, amplifier connection)
DC power input x 21-32 V DC
Power consumption x 5-60W
Maximum supply current (24 V)
Standby x < 250 mA
Idle/announcment/alert x < 800 mA
Environmental
Operating temperature x -5 °C to +45 °C (+23 °F to +113 °F)
Storage temperature x -40 °C to +70 °C (-40 °F to +158 °F)
Humidity (non-condensing) x 5% to 90%
Altitude x Up to 2000 m
Mechanical
Mouting x Standalone; 19 in. rack

Country of Origin:
Germany
Item Numbers
GTIN: 0800549758239, 8717332946754
UPC: 800549758239
EAN: 0800549758239, 8717332946754
UNSPSC: 39121900
