Bosch PLE-1P120-US Security System Products

Bosch - Power amplifier, 120W
$711.69
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch PLE-1P120-US Security System Products Overview

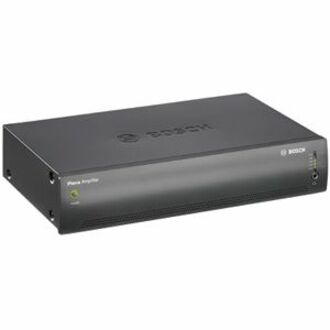

The PLE-1P120-US and PLE-1P240-US are two high-power plug-and-play cost effective power amplifiers that deliver 120 and 240 Watts to constant voltage or 4 ohm loads. Built with premium quality and protections, they offer basic functionality at a budget price. The amplifiers offer straight 1 V and 70 V line in, and 25/70 V and 4 ohm outputs. They can extend the power of the PLE- series mixer-amplifiers or be combined with the PLE-10M2-US mixer, or work anywhere where more power on an existing 70 V line is needed or when a line level signal is provided.

Technical Information
Minimum Frequency Response:
50 Hz
Maximum Frequency Response:
20 kHz
Audio
RMS Output Power:
120 W
PMPO Output Power:
180 W
Power Description
Input Voltage:
  • 24 V DC
  • 110 V AC
  • 220 V AC
Frequency:
60 Hz
Operating Power Consumption:
380 W
Physical Characteristics
Product Color:
Charcoal
Height:
3.9"
Width:
16.9"
Depth:
10.6"
Weight (Approximate):
23.20 lb
Miscellaneous
Package Contents:
  • PLE-1P120-US Plena Amplifier
  • 1 x Power Cord
  • 1 x Manual
  • 1 x Set of 19" Mounting Brackets
Certifications & Standards:
  • EMC Emission: EN 55103-1
  • EMC Immunity: EN 55103-2
  • C-Tick
Environmentally Friendly:
Yes
Environmental Certification:
WEEE
Item Numbers
GTIN: 0800549150446, 4773743269046
UPC: 800549150446
EAN: 0800549150446, 4773743269046
UNSPSC: 52161547
