Bosch NTV-3502-F02L Security Camera

Bosch - Flexidome IP turret 3000i 2mp 130 DEGREE
  • 1080p and 5MP resolutions
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Fully configurable H.265 multi-streaming
  • High Dynamic Range (120 dB) for challenging bright and dark scenes
  • Built-in IR illuminator with 15 m (49 ft) viewing distance
Read More
$312.72
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

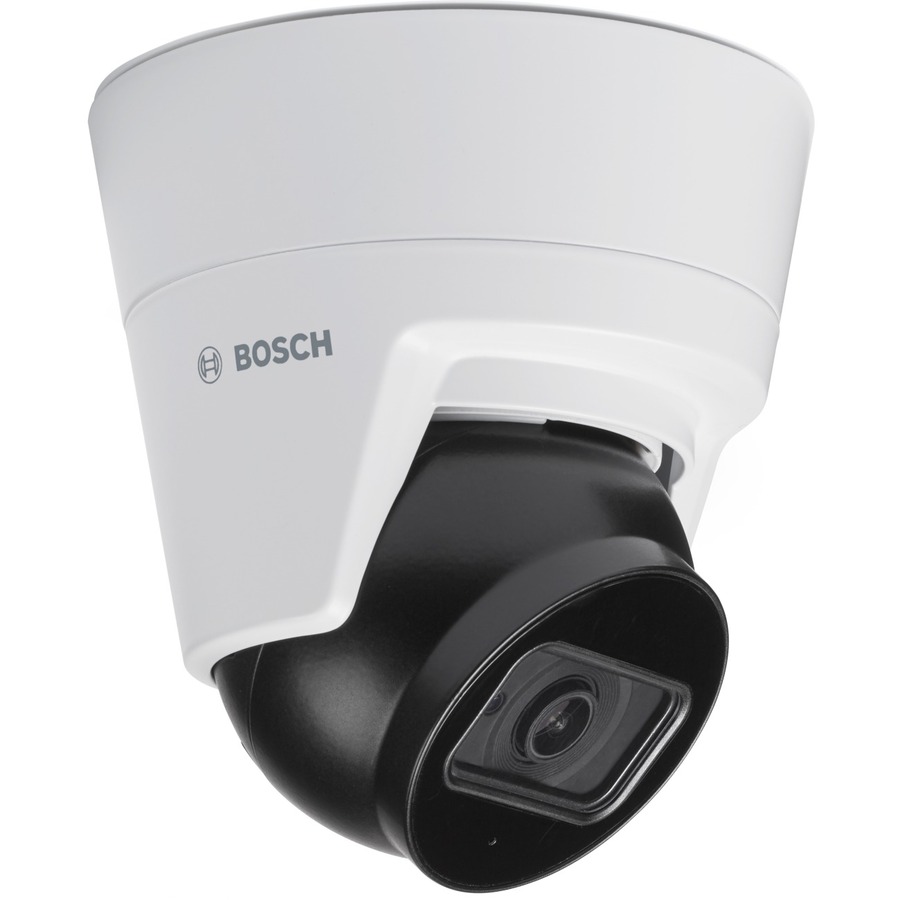

Bosch NTV-3502-F02L Security Camera Overview
The FLEXIDOME IP turret 3000i IR is built for high quality, 24/7 performance, with a range of reliable surveillance features, including Essential Video Analytics.
The compact and minimalist design provides ease of installation.

Essential Video Analytics
The built-in video analysis reinforces the Intelligenceat-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.

High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion
Function (OECF) analysis according to IEC 62676 Part 5.

Intelligent streaming
Smart encoding capabilities, together with Intelligent Dynamic Noise Reduction technology and analytics, reduce the bandwidth consumption to extremely low levels. Only relevant information in the scene, like motion, or objects found with the analytics, need to be encoded. The camera is capable of triple streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring via constrained bandwidths. Each of these streams can be adapted independently to deliver high quality video, perfectly tailored to purpose, while reducing bit rate by up to 90% compared to a standard camera.

H.265 high-efficiency video encoding

The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the compression standard of choice for IP video surveillance systems.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
49.21 ft
Night Vision Type:
Infrared
Number of IR LEDs:
2
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
  • H.265 (HEVC)
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
Surface Mount
Form Factor:
Turret
Durability:
  • Impact Resistant
  • Water Resistant
  • Dust Resistant
Product Color:
White
Height:
5.1"
Diameter:
4.8"
Weight (Approximate):
1.27 lb
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
  • Region of Interest
  • SD Card Local Storage
  • Back Light Compensation (BLC)
  • Automatic Defog
  • Cross Line Detection
  • Privacy Masking
  • Built-in Microphone
  • Built-in Infrared Illuminator
  • 3-Axis Adjustable
  • Automatic White Balance
  • Password Protection
  • Tamper Detection
  • Noise Reduction
Indoor/Outdoor:
Indoor
Package Contents:
  • Turret Camera 2MP HDR 130° IK08 IR
  • 1 x Quick Installation Guide
  • 1 x Safety Information Document
Impact Protection Rating:
IK08
Ingress Protection Rating:
IP42
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NTV-3502-F02L Security Camera is also known as BOS-NTV3502F02L
