Protection Type:
Surge Protection
Bosch NPD-6001B PoE Injectors
Part Number:
NPD-6001B
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

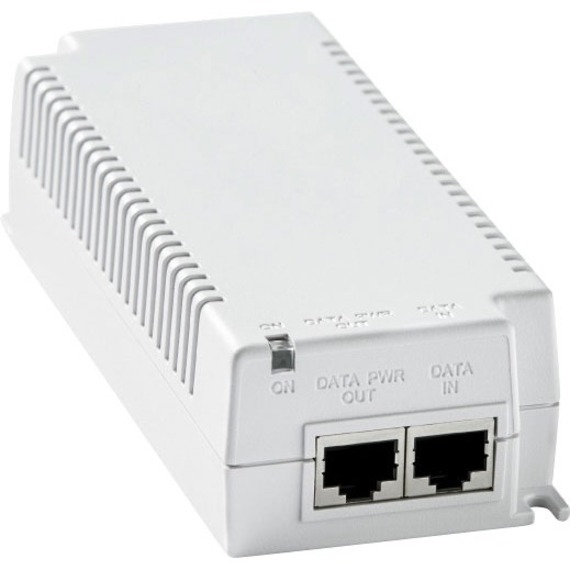

Bosch NPD-6001B PoE Injectors Overview
60 W Midspan The 60 W midspan (NPD-6001B) enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power. Rated for indoor installation only, the midspan can be installed indoors and wired to a camera installed outdoors.
The midspan provides surge protection, optimal for installation of outdoor powered devices. The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs.
The midspan provides surge protection, optimal for installation of outdoor powered devices. The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs.
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Minimum Output Voltage:
54 V DC
Maximum Output Voltage:
57 V DC
Maximum Input Current:
1.50 A
Maximum Output Power:
60 W
Interfaces/Ports
Input Ports:
1 x 10/100/1000Base-T
Output Ports:
1 x 10/100/1000Base-T
Physical Characteristics
Mount Type:
Wall/Shelf/Bench/Desktop-mountable
Height:
1.5"
Width:
2.4"
Length:
5.9"
Weight (Approximate):
11.99 oz
Miscellaneous
Package Contents:
- NPD-6001B High PoE Midspan
- 1 x 120V Power Cord
- 1 x 230V Power Cord
- 1 x Quick Installation Guide
Compatibility:
Bosch IP/HD PTZ Cameras:
- AUTODOME 7000
- MIC7000 (without Illuminators)
Certifications & Standards:
GS
Electromagnetic Compatibility (EMC)
- FCC Part 15
- ICES-003
- CE
- EN 55032 Class B (emission)
- EN 55024 (Immunity)
- VCCI
Product Safety
- UL/cUL
- GS Mark per EN 60950-1
Regulatory Compliance
- IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+, including 2-event)
- CE
Lightning protection
- Meets GR-1089-CORE lightning protection demands
- EN 61000-4-5 (10/700 µsec, 4kv)
- Surge protection: IEC 61643-21
- ITU-T K.45 International standard
Environmentally Friendly:
Yes
Country of Origin:
China
Item Numbers
GTIN:
0800549879248
UPC:
800549879248
EAN:
0800549879248
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Bosch NPD-6001B PoE Injectors is also known as
BOS-NPD6001B
