Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
48 V DC
Minimum Input Current:
400 mA
Maximum Input Current:
1 A
Maximum Output Power:
15.40 W
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

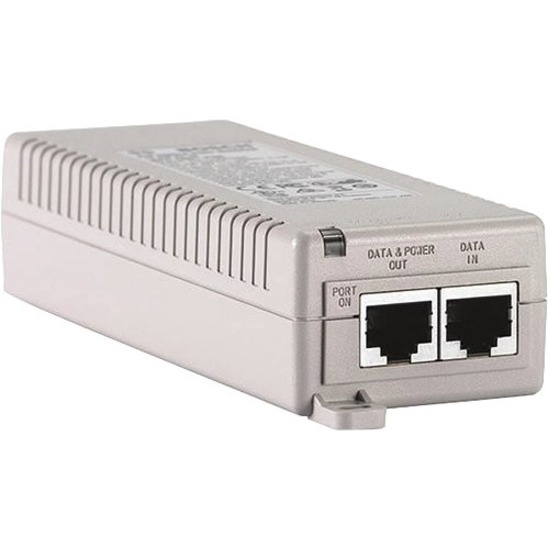

Bosch NPD-5001-POE Security Camera Overview
This power injector allows an existing Ethernet infrastructure to be enhanced for use with PoE cameras.
System overview
The NPD-5001-POE is a single-port power injector that supplies one PoE camera with power.
Functions
The injector converts the AC input power to a +48 VDC power supply which is then provided to the cameras via the Ethernet cable. They support up to 10/100/1000 Mbps pass-through data rates. Each injector provides up to 15.4 W per port. The PoE midspan injector unit can be easily mounted on a shelf, wall or ceiling
System overview
The NPD-5001-POE is a single-port power injector that supplies one PoE camera with power.
Functions
The injector converts the AC input power to a +48 VDC power supply which is then provided to the cameras via the Ethernet cable. They support up to 10/100/1000 Mbps pass-through data rates. Each injector provides up to 15.4 W per port. The PoE midspan injector unit can be easily mounted on a shelf, wall or ceiling
Power Description
Interfaces/Ports
Input Ports:
1 x Gigabit Ethernet
Output Ports:
1 x PoE
Physical Characteristics
Form Factor:
External
Mount Type:
Shelf/Wall/Ceiling-mountable
Height:
1.3"
Width:
2.1"
Length:
5.5"
Weight (Approximate):
7.05 oz
Miscellaneous
Compatibility:
Bosch FLEXIDOME IP micro 3000i Dome Camera
Item Numbers
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Bosch NPD-5001-POE Security Camera is also known as
BOS-NPD5001POE
