Recording Formats:
Full HD
HD Recording:
Yes
Bosch NIN-73023-A3A Security Camera
Part Number:
NIN-73023-A3A
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.

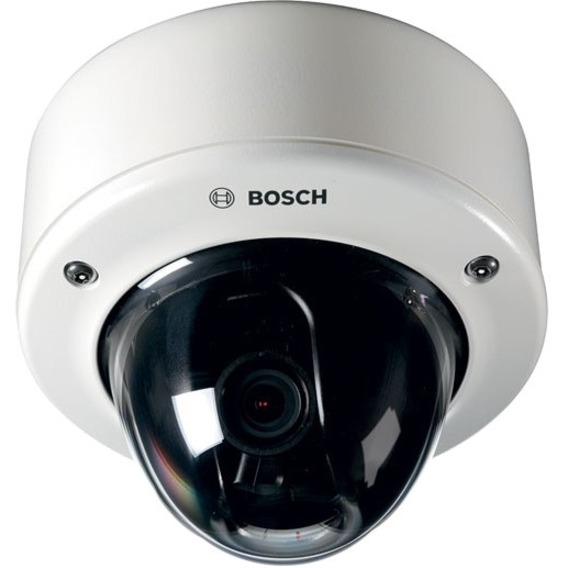

Bosch NIN-73023-A3A Security Camera Overview
This camera provides clear images 24/7 - even at night or under low-light conditions. The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting. The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. The aesthetic vandal-resistant housing makes the camera suitable for indoor or outdoor installation.
Functions Exceptional low-light performance The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.
Fast performance The 60 images-per-second mode provides for optimum performance in fast action scenes and is particularly suitable for casino and banking applications.
High Dynamic Range The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.8"
Color Supported:
- Color
- Monochrome
Field of View:
Wide: 117º x 59º (H x V) Tele: 37º x 21º (H x V )
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- MJPEG
- H.264
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Video Signal Format:
- NTSC
- PAL
Lens
Lens Type:
Zoom
Minimum Focal Length:
3 mm
Maximum Focal Length:
9 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.2
Optical Zoom:
3x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Ethernet
Protocols:
- IPv4
- IPv6
- UDP
- TCP
- HTTP
- HTTPS
- DNS
- DNSv6
- DDNS
- RTP/RTCP
- IGMP v2
- IGMP v3
- ICMP
- ICMPv6
- RTSP
- FTP
- ARP
- DHCP
- APIPA
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
- DC
- PoE
Physical Characteristics
Mount Type:
- Flush Mount
- Surface Mount
Form Factor:
Dome
Durability:
- Water Resistant
- Dust Resistant
Height:
4.9"
Diameter:
6.2"
Weight (Approximate):
1.87 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Maximum Operating Humidity:
100%
Miscellaneous
Features:
- SD Card Local Storage
- Defog
- Wide Dynamic Range
- Day/Night
- Back Light Compensation (BLC)
- Noise Reduction
Indoor/Outdoor:
Indoor/Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Portugal
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN:
0081808958342, 0800549805827, 8717332994809
UPC:
081808958342, 800549805827
EAN:
0081808958342, 0800549805827, 8717332994809
UNSPSC:
46171610
