Recording Formats:
HD
HD Recording:
Yes
Bosch NIN-70122-F1A Security Camera
Part Number:
NIN-70122-F1A
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

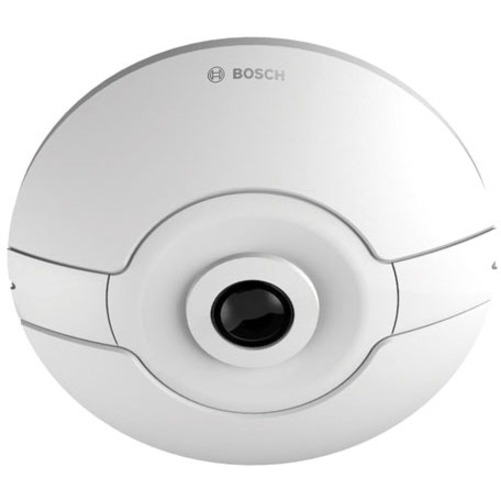

Bosch NIN-70122-F1A Security Camera Overview
The FLEXIDOME IP panoramic 7000 MP is a discreet, aesthetic, low-profile camera for indoor use. The 12MP sensor operating at 30 fps provides full panoramic surveillance with complete area coverage, fine details and high speeds. The camera offers full situational awareness and simultaneous E-PTZ views in high resolution.
Lens versions
The 360° version of the camera, when mounted centrally on a ceiling, gives complete wall-to-wall coverage. The 180° version has a higher effective resolution and is ideal for wall mounting or for ceiling mounting in corridors.
Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration, you can choose edge dewarping inside the camera or client-side dewarping on an external platform. The freely available Video Security Client from Bosch provides advanced client-side dewarping features.
Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area, they provide complete situational awareness and are ideally suited to following movement in one continuous sweep.
Lens versions
The 360° version of the camera, when mounted centrally on a ceiling, gives complete wall-to-wall coverage. The 180° version has a higher effective resolution and is ideal for wall mounting or for ceiling mounting in corridors.
Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration, you can choose edge dewarping inside the camera or client-side dewarping on an external platform. The freely available Video Security Client from Bosch provides advanced client-side dewarping features.
Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area, they provide complete situational awareness and are ideally suited to following movement in one continuous sweep.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
3640 x 2160
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.10 mm
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Pendant Mount
- Surface Mount
Form Factor:
Dome
Height:
1.3"
Weight (Approximate):
15.70 oz
Miscellaneous
Indoor/Outdoor:
Indoor
Package Contents:
- FLEXIDOME IP Network Camera
- Quick Install Instructions
- Identification Labels
- Mounting Ring
- 2 x Allen Keys (T10 and 1.5)
- 4 x Screws (4.5 x 40)
- 4 x Plugs
- 2 x Washers (M4 x 14) for Mounting to 4s Box
- Surface Mount Box with 4 x M5 Screws (Delivered Separately With SMB Versions of The Camera)
Environmentally Friendly:
Yes
Country of Origin:
Portugal
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Bosch NIN-70122-F1A Security Camera is also known as
BOS-NIN70122F1A
