Recording Formats:
Full HD
HD Recording:
Yes
Bosch NIN-63023-A3 Security Camera
Part Number:
NIN-63023-A3
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.

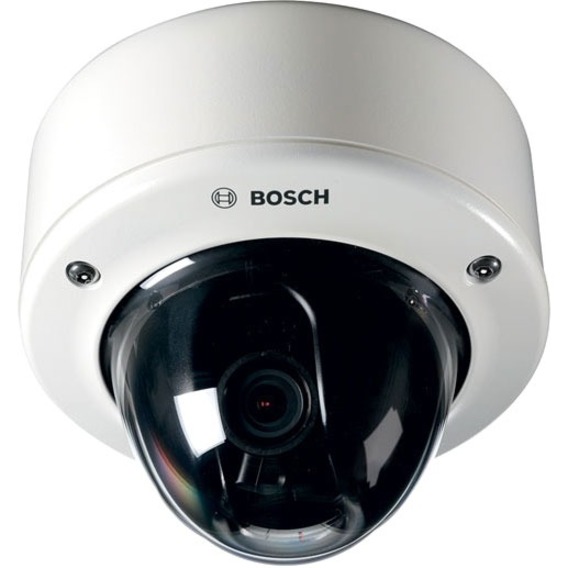

Bosch NIN-63023-A3 Security Camera Overview
This camera provides clear images 24/7 - even at night or under low-light conditions. The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting. The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. The aesthetic vandal-resistant housing makes the camera suitable for indoor or outdoor installation
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.8"
Color Supported:
- Color
- Monochrome
Field of View:
Wide: 117º x 59º (H x V) Tele: 37º x 21º (H x V )
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- H.264M
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Video Signal Format:
- PAL
- NTSC
Analog Video Signal Format:
CVBS
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
9 mm
Lens Mount Type:
Board Mount
Maximum Aperture:
f/1.2
Optical Zoom:
3x
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- UDP
- TCP
- HTTP
- HTTPS
- RTP/RTCP
- IGMP v3
- IGMP v2
- ICMP
- ICMPv6
- RTSP
- FTP
- ARP
- DHCP
- APIPA
- NTP
- SNTP
- SNMPv1 (MIB2)
- SNMPv3 (MIB2)
- 802.1X
- DNS
- DNSv6
- DynDNS
- SMTP
- iSCSI
- UPnP (SSDP)
- DiffServ (QoS)
- LLDP
- SOAP
- CHAP
- Digest Authentication
- ONVIF
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
- DC
- PoE
Physical Characteristics
Mount Type:
Surface Mount
Form Factor:
Dome
Durability:
- Impact Resistant
- Water Resistant
- Dust Resistant
Color Family:
White
Product Color:
White
Height:
5.6"
Weight (Approximate):
2.82 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
165.2°F (74°C)
Maximum Operating Humidity:
100%
Miscellaneous
Features:
- Wide Dynamic Range
- Built-in Microphone
- Tamper Detection
- Motion Detection
- SD Card Local Storage
- Automatic White Balance
- Auto Gain Control
- Day/Night
- Dynamic Noise Reduction
- Automatic Defog
Indoor/Outdoor:
Indoor/Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Country of Origin:
Portugal
TAA Compliant:
Yes
NDAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- China Restriction of Hazardous Substances (China RoHS)
Item Numbers
GTIN:
0800549805810, 8717332994793
UPC:
800549805810
EAN:
0800549805810, 8717332994793
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Bosch NIN-63023-A3 Security Camera is also known as
BOS-NIN63023A3
