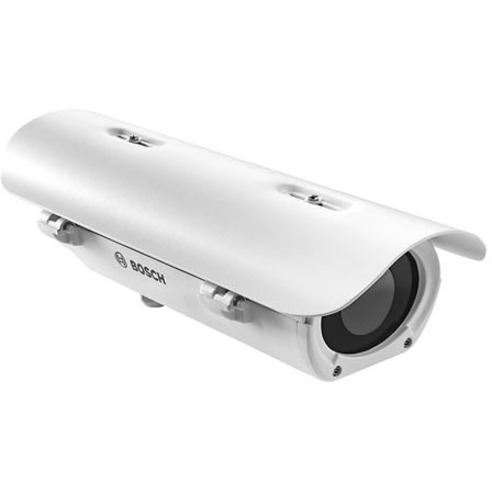

Bosch NHT-8001-F65VS Security Camera

Bosch Dinion IP Thermal 8000 - Security Cameras, Bosch Dinion IP Thermal 8000, <9Hz, VGA, 65mm, Thermal imaging IP camera, VGA, 9 fps, 65 mm lens
  • Long detection range (up to 5850 m)
  • Integrated Intelligent Video Analytics
  • 640 x 480 resolution version available for even sharper images
  • High access security for data protection
Read More
$15,219.32
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NHT-8001-F65VS Security Camera Overview

This thermal IP camera provides high-sensitivity thermal images using an un-cooled vanadium oxide microbolometer that delivers outstanding image quality. The camera is designed to combine the benefits of thermal imaging with the market leading Intelligent Video Analytics from Bosch. There is no need for natural or artificial lighting of the area of interest. The camera produces crisp and clear images day and night, even in challenging environments with smoke, dust, haze or fog.

Versions

The camera comes with a choice of narrow field-of-view (NFOV) or wide field-of-view (WFOV) lenses. The QVGA resolution variant is available with a frame rate of 9 or 60 fps; the VGA resolution variant is available with a frame rate of 9 or 30 fps. The camera is enclosed in a robust outdoor housing making it ideal for a wide range of applications in demanding environments.

Display & Graphics
Image Sensor Type:
Focal Plane Array (FPA)
Thermal Image Sensor Type:
Uncooled Vanadium Oxide Microbolometer
Color Supported:
Color
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
640 x 480
Maximum Frame Rate:
9 fps
Video Signal Format:
NTSC
Analog Video Signal Format:
CVBS
Lens
Lens Type:
Fixed
Maximum Focal Length:
65 mm
Lens Included:
Yes
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Mount Type:
  • Pole Mount
  • Wall Mount
  • Bracket Mount
  • Corner Mount
Product Color:
White
Height:
5.6"
Width:
6.5"
Length:
16.9"
Weight (Approximate):
7.72 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
95%
Miscellaneous
Features:
  • Region of Interest
  • SD Card Local Storage
  • Auto Tracking
  • Cross Line Detection
  • Enter/Exit Detector
  • Ingress Protection
Indoor/Outdoor:
Outdoor
Package Contents:
  • 1 x DINION IP Thermal 8000 Camera
  • 1 x Power Connector (2 Pins)
  • 1 x Data/Alarm Connector (12 Pins)
  • 1 x Hex Wrench
  • 1 x Installation Guided
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
TAA Compliant:
Yes
Item Numbers
GTIN: 0800549823258
UPC: 800549823258
EAN: 0800549823258
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NHT-8001-F65VS Security Camera is also known as BOS-NHT8001F65VS or NHT-8001-F65VS.
