Bosch NHT-8001-F17VS Security System Products
Part Number:
NHT-8001-F17VS
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.
Bosch NHT-8001-F17VS Security System Products Overview

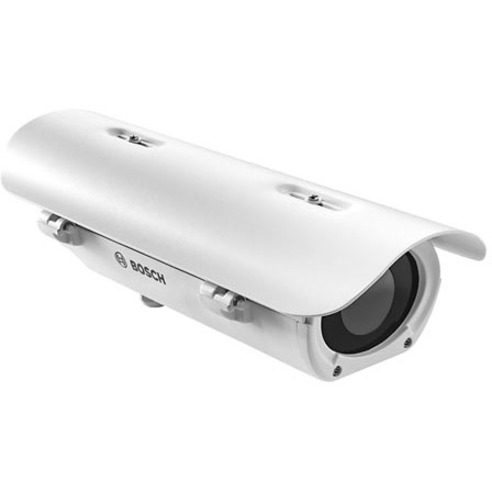

This thermal IP camera provides high-sensitivity thermal images using an un-cooled vanadium oxide microbolometer that delivers outstanding image quality. The camera is designed to combine the benefits of thermal imaging with the market leading Intelligent Video Analytics from Bosch. There is no need for natural or artificial lighting of the area of interest. The camera produces crisp and clear images day and night, even in challenging environments with smoke, dust, haze or fog.
Versions
The camera comes with a choice of narrow field-of-view (NFOV) or wide field-of-view (WFOV) lenses. The QVGA resolution variant is available with a frame rate of 9 or 60 fps; the VGA resolution variant is available with a frame rate of 9 or 30 fps. The camera is enclosed in a robust outdoor housing making it ideal for a wide range of applications in demanding environments.
Technical Information
Display & Graphics
Thermal Image Sensor Type:
Uncooled Vanadium Oxide Microbolometer
Color Supported:
Color
Field of View:
: 37.5°H x 28°V
Video
Video Formats:
- H.264
- MJPEG
Maximum Video Resolution:
640 x 480
Maximum Frame Rate:
9 fps
Video Signal Format:
NTSC
Lens
Lens Type:
Fixed
Lens Included:
Yes
Maximum Thermal Focal Length:
0.66"
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- UDP
- TCP
- HTTP
- HTTPS
- LLDP
- SOAP
- CHAP
- DiffServ (QoS)
- IGMP v2
- IGMP v3
- ICMP
- ICMPv6
- FTP
- ARP
- DHCP
- APIPA
- NTP
- SNTP
- RTSP
- RTP/RTCP
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Power Source Type:
AC
Physical Characteristics
Color Family:
White
Product Color:
White
Height:
5.6"
Width:
6.5"
Length:
16.9"
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
131°F (55°C)
Maximum Operating Humidity:
95%
Miscellaneous
Features:
- SD Card Local Storage
- Ingress Protection
- Human Detection
- Region of Interest
- Cross Line Detection
Indoor/Outdoor:
Outdoor
Package Contents:
- 1 x DINION IP Thermal 8000 Camera
- 1 x Power Connector (2 Pins)
- 1 x Data/Alarm Connector (12 Pins)
- 1 x Hex Wrench
- 1 x Installation Guided
Ingress Protection Rating:
IP66
TAA Compliant:
Yes
Environmentally Friendly:
Yes
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN:
0800549818827, 8717332796830
UPC:
800549818827
EAN:
0800549818827, 8717332796830
UNSPSC:
46171610
