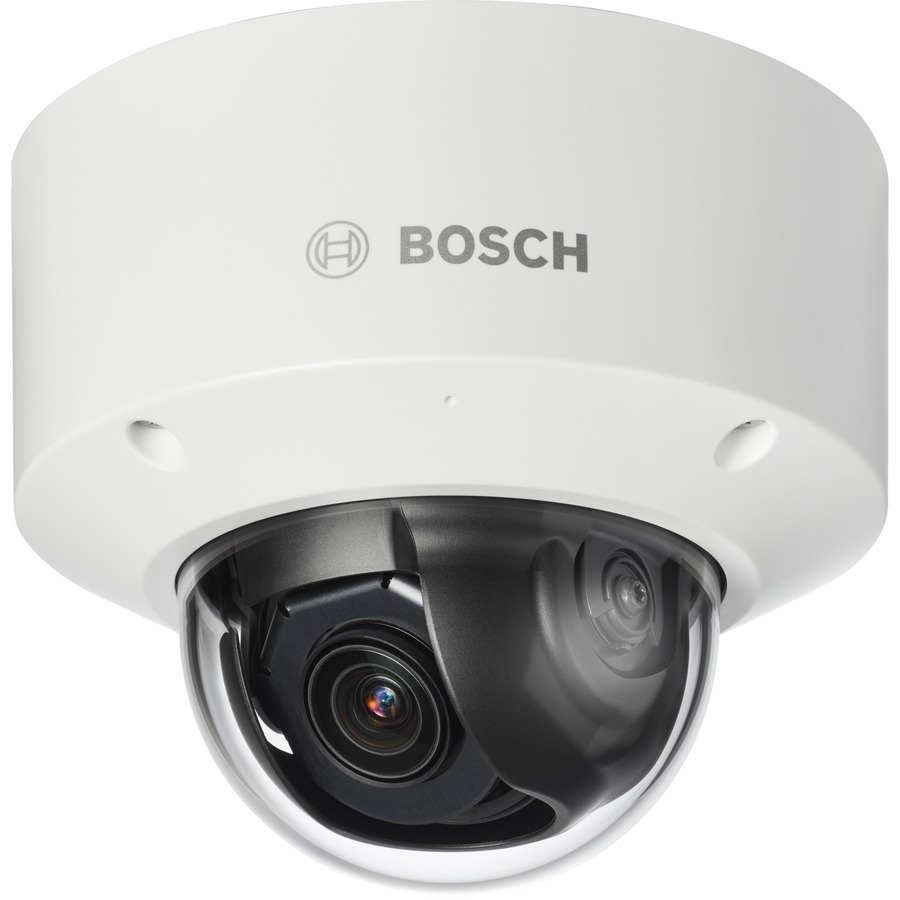

Bosch NDV-8504-R Security Camera

Bosch - INDOOR FIXED DOME 8MP HDR 3.9-10 MM, PTRZ, POE, IP54 (WITH ACCESSORY KIT), IK10
  • Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
  • 1/1.8" 4K UHD sensor and starlight technology to provide highly detailed images even in extreme low-light situations
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
  • Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
  • Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
Read More
$1,685.98
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NDV-8504-R Security Camera Overview
The FLEXIDOME IP indoor 8000i - 8 MP series camera offers a 1/1.8" sensor, starlight and High Dynamic Range at 4K ultra HD resolution. It provides highly detailed images even in challenging conditions. The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens

Functions

Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact, as an installer, you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time. With the FLEXIDOME IP indoor 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect to the camera remotely via the network using the Bosch Project Assistant app, the camera's web interface, or the Bosch Configuration Manager.

Fast performance
The high sensor resolution together with a frame rate of 30 frames per second makes this camera an ideal solution for capturing fast moving objects in high detail and, at the same time, providing situational awareness.

Starlight performance
The latest sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The lowlight performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.

High Dynamic Range

The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.

Scene modes

Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments.
Technical Information
Recording Formats:
4K
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Field of View:
Wide: 117º x 62º (H x V); Tele: 44º x 24º (H x V)
Effective Camera Resolution:
8.3 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
  • H.265 (HEVC)
Maximum Video Resolution:
3840 x 2160
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3.90 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Minimum Aperture:
f/1.6
Maximum Aperture:
f/2.7
Optical Zoom:
2.6x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • In-ceiling
  • Surface Mount
  • Wall Mount
  • Pipe Mount
  • Ceiling Mount
  • Pole Mount
Form Factor:
Dome
Durability:
  • Impact Resistant
  • Water Resistant
  • Dust Resistant
Product Color:
White
Height:
5.8"
Diameter:
7"
Weight (Approximate):
4.52 lb
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Region of Interest
  • Automatic Defog
  • Cross Line Detection
  • White Balance
  • Face Detection
  • Tamper Detection
  • Day/Night
  • Privacy Masking
  • Back Light Compensation (BLC)
  • SD Card Local Storage
  • Built-in Microphone
  • Wide Dynamic Range
Indoor/Outdoor:
Indoor
Package Contents:
  • Fixed Dome 8MP HDR 3.9-10mm PTRZ
  • 1 x T-20 Security Torx Bit
  • 1 x Quick Installation Guide
  • 1 x Safety Information
  • 1 x Cable Conduit for Side Entry
  • 1 x Washer for Cable Conduit
  • 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25)
  • 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20)
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP54
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NDV-8504-R Security Camera is also known as BOS-NDV8504R
