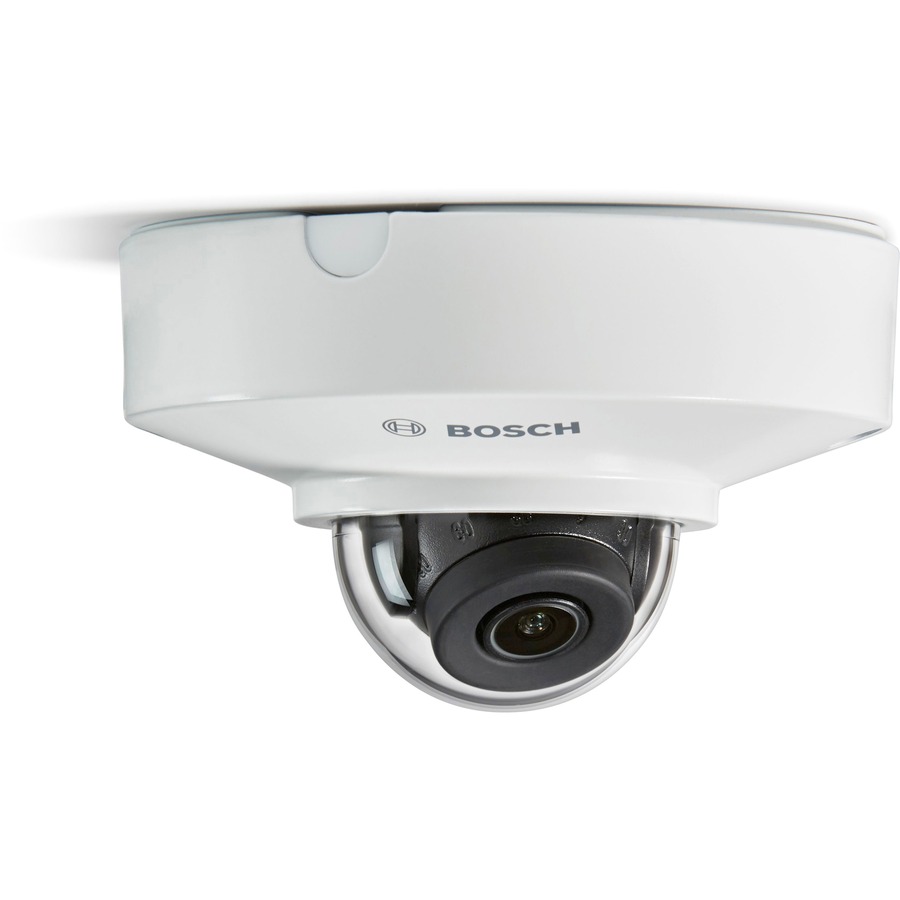

Bosch NDV-3503-F03 Security Camera

Bosch - Fixed micro dome 5MP HDR 100 IK08
  • 1080p and 5MP resolutions
  • Built-in Essential Video Analytics to trigger relevant
  • alerts and quickly retrieve data
  • Fully configurable H.265 multi-streaming
  • High Dynamic Range (120 dB) for challenging bright
  • and dark scenes
  • Built-in microphone for audio recording
Read More
$361.46
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NDV-3503-F03 Security Camera Overview

The FLEXIDOME IP micro 3000i is built for highquality, 24/7 performance, with a range of reliable surveillance features, including Essential Video Analytics, and is designed for easy installation.
The compact and minimalist design provides high installation flexibility and offers various mounting options.

Essential Video Analytics
The built-in video analysis reinforces the Intelligenceat-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges.

The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.

High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.

Intelligent streaming
Smart encoding capabilities, together with Intelligent Dynamic Noise Reduction technology and analytics, reduce the bandwidth consumption to extremely low levels. Only relevant information in the scene, like motion, or objects found with the analytics, need to be encoded.
The camera is capable of triple streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring via constrained bandwidths. Each of these streams can be adapted independently to deliver high quality video, perfectly tailored to purpose, while reducing bit rate by up to 90% compared to a standard camera.

Technical Information
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
  • H.265 (HEVC)
Maximum Video Resolution:
3072 x 1728
Maximum Frame Rate:
25 fps
Lens
Lens Included:
Yes
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
Surface Mount
Form Factor:
Micro Dome
Durability:
Impact Resistant
Product Color:
White
Height:
2.6"
Diameter:
4.3"
Weight (Approximate):
10.23 oz
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Built-in Microphone
  • Tamper Detection
  • Motion Detection
  • SD Card Local Storage
  • Automatic White Balance
  • Auto Gain Control
  • Day/Night
  • Dynamic Noise Reduction
  • Automatic Defog
Indoor/Outdoor:
Indoor
Impact Protection Rating:
IK08
Environmentally Friendly:
Yes
TAA Compliant:
Yes
Item Numbers
GTIN: 0800549936477, 0800549974752
UPC: 800549936477, 800549974752
EAN: 0800549936477, 0800549974752
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NDV-3503-F03 Security Camera is also known as BOS-NDV3503F03
