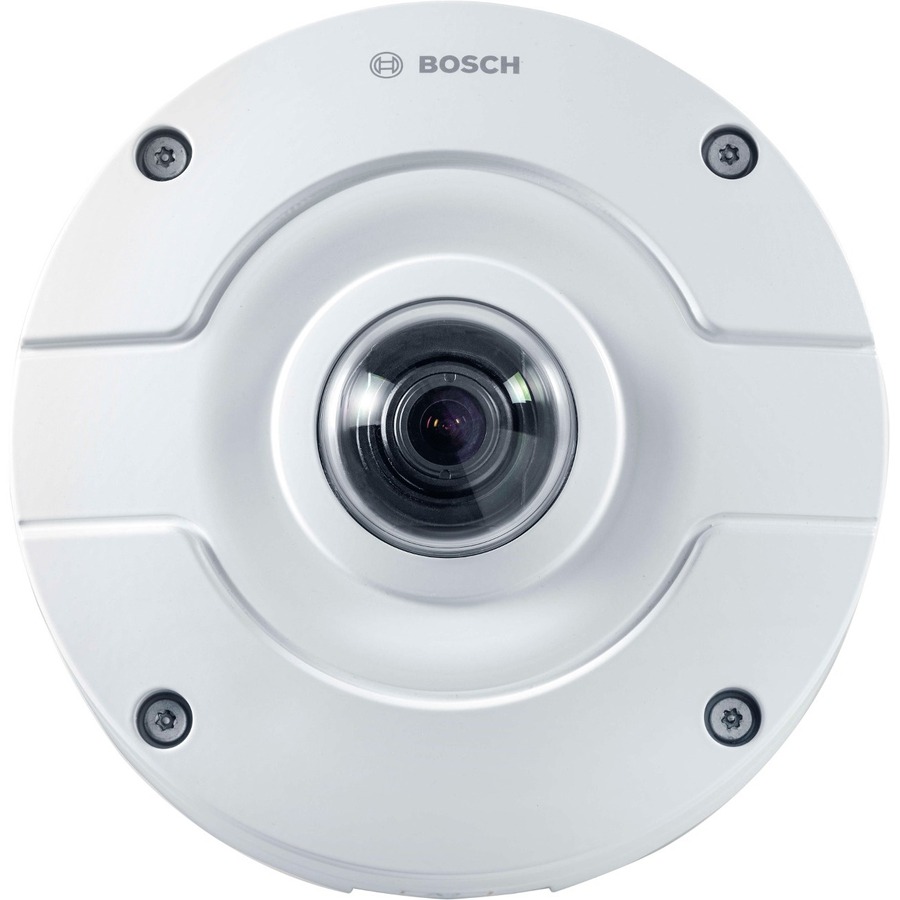

Bosch NDS-6004-F180E Security Camera

Bosch - IP66 OUTDOOR FLEXIDOME IP PANORAMIC 12MP SENSOR, 180DEGREE EDGE & CLIENT DEWARPING, ESSENTIAL ANALYTICS SMB
  • Up to 3640 x 2160 video resolution
  • CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
  • 2.10 mm maximum focal length for dependable identification distances with better coverage
  • f/2.8 maximum aperture for reliable, detailed, and sharp output with added dependability
  • HD recording format for exceptional video quality with maximum productivity
  • Fixed lens type is ideal for indoor video surveillance where light levels are constant and unchanged
  • Surface mount offers great reliability with maximum space efficiency
  • Wired connectivity technology helps you always stay connected to your network camera for maximum productivity
Read More
$1,277.77
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NDS-6004-F180E Security Camera Overview
The FLEXIDOME IP panoramic 6000 is an outdoor use camera. The 12MP sensor operating at 30 fps gives a full panoramic surveillance with complete area coverage, fine details and high speeds. The camera offers full situational awareness and simultaneous EPTZ views in high resolution.

Versions
The 360° version of the camera, when mounted centrally on a pole or under an eave, gives complete surround coverage without blind spots. The 180° version has a higher effective resolution and is ideal for wall mounting in perimeter surveillance by obtaining a seamless 180º coverage.

Dewarping
The lens captures a circular image. Our dewarping software transforms this circular image into several different distortion-free rectangular views. To facilitate system integration, you can choose edge dewarping inside the camera or client-side dewarping on an external platform.
The freely available Video Security Client from Bosch provides advanced client-side dewarping features. The 360° version of the camera, when mounted centrally on a pole or under an eave, gives complete surround coverage without blind spots. The 180° version has a higher effective resolution and is ideal for wall mounting in perimeter surveillance by obtaining a seamless 180º coverage.

System overview

Advantages of panoramic surveillance

Panoramic surveillance offers full 180° or 360° coverage of the designated area. Because our panoramic cameras cover the full area, they provide complete situational awareness and are ideally suited to following movement in one continuous sweep.
These panoramic cameras will considerably augment the functionality of any high-end surveillance system especially when coupled with Essential Video Analytics, for example, for people counting or complex rule-based alarm triggering.

Functions

12MP sensor at 30 fps
The ultra high 12MP sensor resolution together with the exceptionally high frame rate of 30 fps makes this camera unique in the field of panoramic image capture. Motion is smoother and the E-PTZ feature provides more detailed images.
The effective resolution for the 180° version is 8MP and for the 360° version 7MP.

Essential Video Analytics
The built-in video analysis reinforces the Intelligenceat-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum.

MOTION+
The MOTION+ video motion analysis system that is built into all camera versions is the perfect solution for applications where basic video content analysis features are required. MOTION+ shows motion metadata in an overlay display. By using MOTION+ data as input, smarter imaging algorithms bring improved image quality and more efficient bitrates. It also enables extended tamper detection capabilities.

Client-side dewarping
With client-side dewarping, the camera streams a single circular non-dewarped image at 30 fps. Dewarping is performed with our dewarping software that is installed on the PC where multiple view modes are available or you can choose to use a third-party client-side dewarping software solution.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
Maximum Video Resolution:
3640 x 2160
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.10 mm
Maximum Aperture:
f/2.8
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
  • Pendant Mount
  • Pipe Mount
  • Wall Mount
  • Surface Mount
  • Pole Mount
Form Factor:
Dome
Product Color:
Signal White
Height:
4.3"
Diameter:
6.9"
Weight (Approximate):
4.54 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Environmentally Friendly:
Yes
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN: 0800549934428
UPC: 800549934428
EAN: 0800549934428
UNSPSC: 46171610
