Recording Formats:
Full HD
HD Recording:
Yes

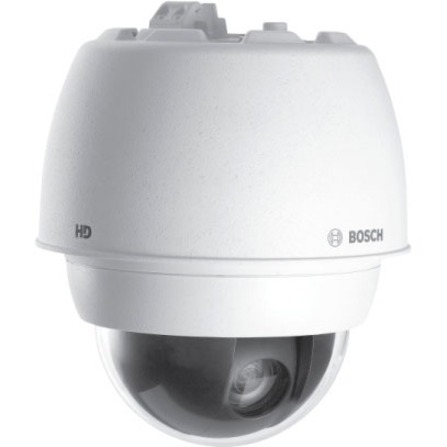

Bosch NDP-7602-Z30K Security Camera
Part Number:
NDP-7602-Z30K
Model:
Parts
Bosch Accessory Model Overview
Products and parts from Bosch.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.8"
Color Supported:
- Color
- Monochrome
Field of View:
2.3° to 64.7°
Effective Camera Resolution:
2.3 Megapixel
Video
Video Formats:
- H.265
- H.264
- MJPEG
- JPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
129 mm
Lens Included:
Yes
Minimum Aperture:
f/4.7
Maximum Aperture:
f/1.6
Optical Zoom:
30x
Exposure
Shortest Shutter Speed:
1/30000 Second
Longest Shutter Speed:
1/1 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Fast Ethernet
Protocols:
- IPv4
- IPv6
- UDP
- TCP
- HTTP
- HTTPS
- RTP/RTCP
- IGMP v2
- IGMP v3
- ICMP
- ICMPv6
- RTSP
- FTP
- ARP
- APIPA
- DHCP
- NTP
- SNTP
- DNS
- DNSv6
- DDNS
- SMTP
- iSCSI
- UPnP (SSDP)
- LLDP
- CHAP
- SOAP
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Power Source Type:
AC
Physical Characteristics
Mount Type:
Pendant Mount
Form Factor:
Dome
Color Family:
White
Product Color:
White
Height:
11.8"
Width:
8.8"
Weight (Approximate):
7.05 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
131°F (55°C)
Maximum Operating Humidity:
100%
Miscellaneous
Features:
- Day/Night
- Removable IR Cut-off Filter
- Wide Dynamic Range
- Auto Gain Control
- Back Light Compensation (BLC)
- Automatic White Balance
- Defog
- Dynamic Noise Reduction
- Privacy Masking
- Cross Line Detection
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
TAA Compliant:
Yes
NDAA Compliant:
Yes
Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
Item Numbers
GTIN:
0800549961912, 0800549975414
UPC:
800549961912, 800549975414
EAN:
0800549961912, 0800549975414
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Bosch NDP-7602-Z30K Security Camera is also known as
BOS-NDP7602Z30K
