Recording Formats:
HD
HD Recording:
Yes
Bosch NDP-5523-Z30L-P Security Camera
Part Number:
NDP-5523-Z30L-P
Model:
Parts
Bosch Parts Accessory Model Overview
Products and parts from Bosch.

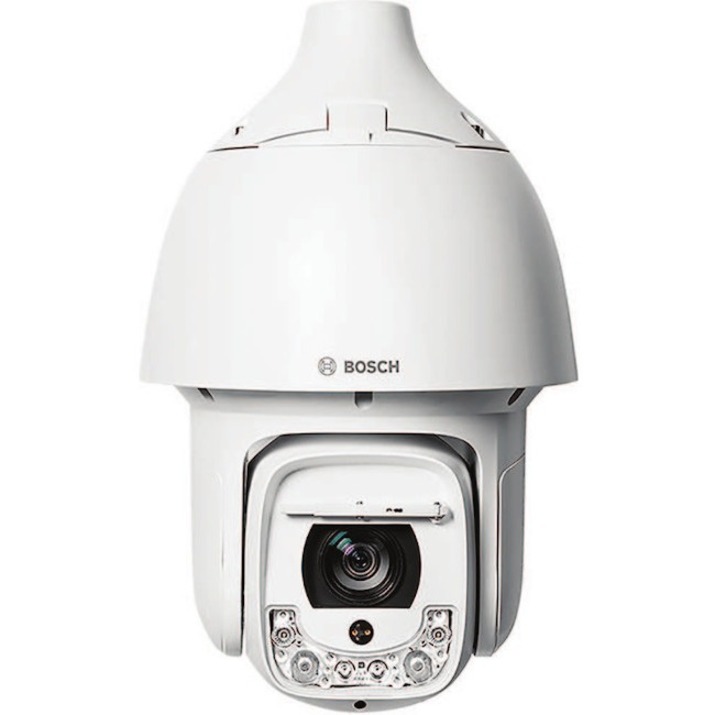

Bosch NDP-5523-Z30L-P Security Camera Overview
Specially designed for covertness, and tuned for applications where surveillance in scenes with changing light levels is necessary, the camera has an integrated 30X optical zoom to identify people at a distance of more than 280 m (919 ft).
The new HDR technology (HDR X) is ideal for PTZ cameras. With the motion-optimized HDR feature, operators can use HDR imaging in scenes with challenging light levels without seeing blur when the camera is moving.
With a 1/1.8-inch, ultra HD sensor and integrated IR and white light illumination, the camera provides superior low-light and no-light performance for outstanding image quality with sharp focus details and excellent color reproduction even under challenging lighting conditions.
The integrated, rain-sensing wiper automatically wipes water from the camera window to ensure outstanding image quality in bad weather.
The new HDR technology (HDR X) is ideal for PTZ cameras. With the motion-optimized HDR feature, operators can use HDR imaging in scenes with challenging light levels without seeing blur when the camera is moving.
With a 1/1.8-inch, ultra HD sensor and integrated IR and white light illumination, the camera provides superior low-light and no-light performance for outstanding image quality with sharp focus details and excellent color reproduction even under challenging lighting conditions.
The integrated, rain-sensing wiper automatically wipes water from the camera window to ensure outstanding image quality in bad weather.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
- Color
- Monochrome
Field of View:
2.1° to 58.5°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
- H.265
- H.264
- MJPEG
Thermal Video Resolution:
2560 x 1440
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
6.60 mm
Maximum Focal Length:
198 mm
Lens Included:
Yes
Minimum Aperture:
f/1.5
Maximum Aperture:
f/4.8
Optical Zoom:
30x
Exposure
Shortest Shutter Speed:
1/66666 Second
Longest Shutter Speed:
0.64 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Physical Characteristics
Mount Type:
- Wall Mount
- Pole Mount
- Corner Mount
- Roof Mount
Product Color:
Signal White
Width:
11.2"
Depth:
18"
Weight (Approximate):
21.83 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
90%
Miscellaneous
Features:
- PTZ
- Wide Dynamic Range
- Auto Gain Control
- Day/Night
- Back Light Compensation (BLC)
- Automatic White Balance
- Defog
- Privacy Masking
- Cross Line Detection
- Enter/Exit Detector
- Tamper Detection
- Audio Detection
- HTTPS Encryption
- Audio Compression
- SD Card Local Storage
- Alarm Triggering
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
TAA Compliant:
Yes
Item Numbers
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Bosch NDP-5523-Z30L-P Security Camera is also known as
BOS-NDP5523Z30LP
