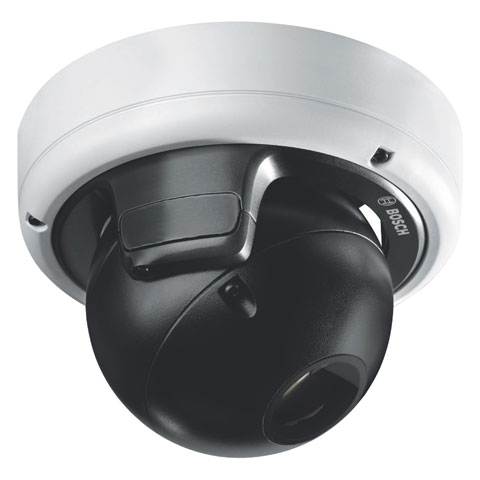

Bosch NDN-733V09-P Surveillance Camera

Bosch - IP FLEXIDOME RD 1MP HD 720P60 STARLIGHT 9-40 MM AUDIO POE
$556.60
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Field-programmable using DTMF and DIP switches

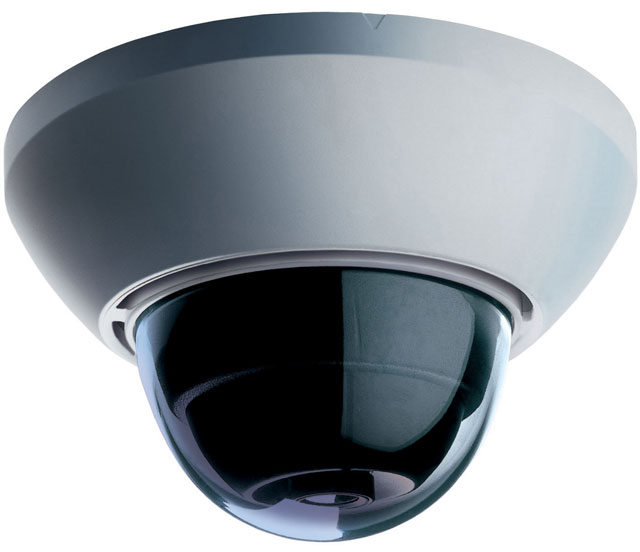

The Bosch FlexiDome Series is a fixed compact camera in a stylish surveillance dome. The FlexiDome Series features standard resolution high resolution applications. The high performance 1/4-inch monochrome or color CCD cameras come in a choice of 2.1-mm, 3-mm or 6-mm integral lenses for super-wide angle or standard view. Wide AC voltage ranges allow flexibility in both PAL and NTSC versions.

General Information

  • Product Type: Network Camera
  • Brand Name: Bosch
  • Manufacturer: The Bosch Group
  • Product Model: NDN-733V09-P
  • Product Name: FlexiDomeHD NDN-733V09-P Network Camera
  • Product Line: FlexiDomeHD

Physical Characteristics

  • Diameter: 8.2"
  • Height: 5.9"
  • Color: Metallic Titanium
  • Weight (Approximate): 4.85 lb
  • Form Factor:
    • Wall Mount
    • Corner Mount
    • Surface Mount
    • Ceiling Mount
    • Dome

Interfaces/Ports

  • Network (RJ-45): Yes
  • Analog Video Out: Yes
  • Audio Line In: Yes
  • Audio Line Out: Yes

Other

  • Certifications & Standards:
    • IP67
    • IK10
    • NEMA-4X
    • UL
    • FCC
    • EN 55022 Class B
    • FCC Part 15 Class B
    • EN 50130-4 (PoE, +12 VDC, 24 VAC)
    • EN 50121-4
    • EN 60950-1
    • UL 60950-1 (2nd edition)
    • CAN/CSA-C 22.2 No. 60950-1
    • IEC 60068-2-6
    • EN 50132-5-2
    • IEC 62676-2-3
  • Features:
    • Motion Detection
    • Day/Night
    • Vandal Resistant
    • SD Card Local Storage
    • Noise Reduction
    • Face Detection
    • Dust Proof
    • Water Proof
  • Security Features:
    • Password protection
    • 802.1x authentication
    • HTTPS with a SSL certificate stored in the camera
    • AES encrypted with 128-bit keys
  • Application/Usage:
    • Outdoor
    • Indoor

Network & Communication

  • Ethernet Technology: Fast Ethernet
  • Connectivity Technology: Cable
  • Protocols:
    • IPv4
    • IPv6
    • UDP
    • TCP
    • HTTP
    • HTTPS
    • RTP
    • IGMP v3
    • IGMP v2
    • ICMP
    • RTSP
    • FTP
    • Telnet
    • ARP
    • DHCP
    • SNTP
    • SNMP (MIB-2)
    • 802.1X
    • SMTP
    • UPnP (SSDP)
    • iSCSI
    • RTCP
    • ICMPv6
    • SNMP
    • DNS
    • DDNS
    • QoS
  • Ethernet: Yes

Display & Graphics

  • Image Sensor Size: 1/3"
  • Image Sensor Type: CMOS
  • Effective Camera Resolution: 1 Megapixel
  • Color Supported:
    • Color
    • Monochrome
  • Illumination: Minimum 0.01 Lux
  • Viewing Angle: 3.9° to 30°
  • White Balance Modes:
    • ATW
    • ATWHold
    • Manual
    • Indoor
    • Outdoor

Lens

  • Lens Included: Yes
  • Optical Zoom: 4.4x
  • Focal Length: 9 mm to 40 mm
  • Focus Modes:
    • Automatic
    • Adjustable

Video

  • Maximum Video Resolution: 1280 x 720
  • Maximum Frame Rate: 60 fps
  • Video Formats:
    • H.264
    • Motion JPEG

Exposure

  • Longest Shutter Speed: 1/30 Second
  • Shortest Shutter Speed: 1/150000 Second
  • Exposure Control: Auto

Power Description

  • Maximum Power Consumption: 12 W


  • Image Formats: JPEG

Audio

  • Audio Formats: AAC

Full specifications (PDF)



The Bosch NDN-733V09-P is also known as BOS-NDN733V09P or NDN733V09P .
