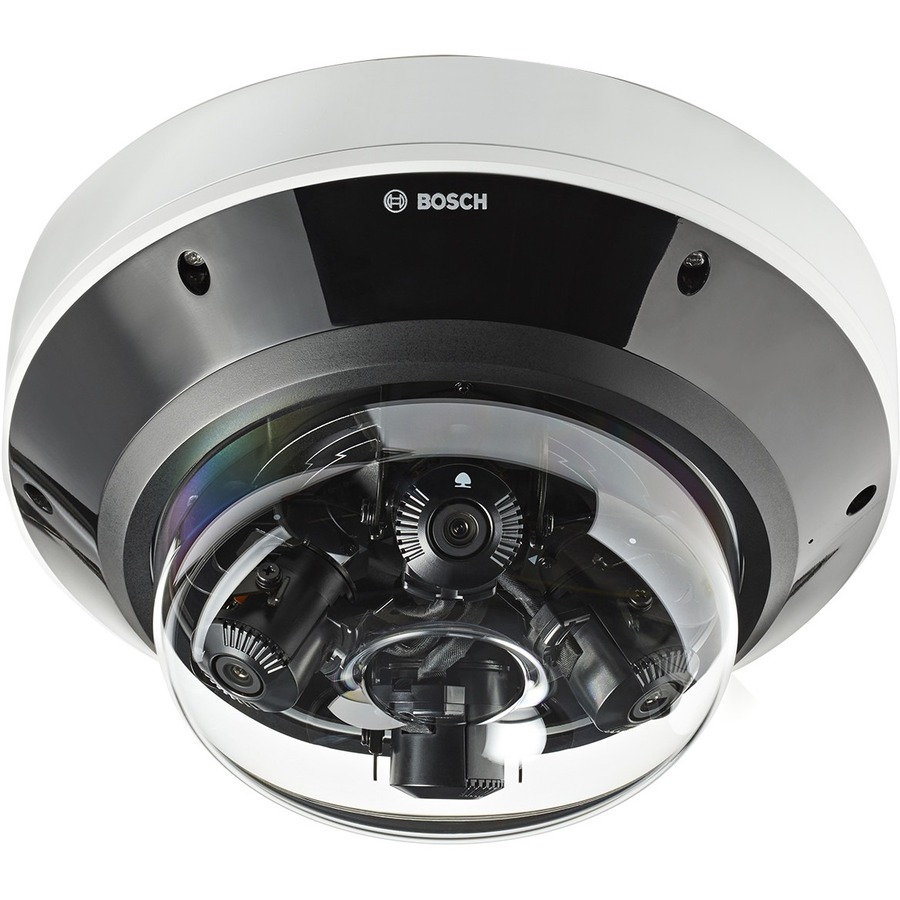

Bosch NDM-7703-AL Security Camera

Part Number: NDM-7703-AL
Model: Parts
$2,745.82

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared

Product Description:

  Fixed dome 20MP 3.7-7.7 mm IP66 / IK10, IR, Integrated MIC

Bosch Accessory Model Overview

Products and parts from Bosch.
Bosch NDM-7703-AL Security Camera Overview
The new FLEXIDOME multi 7000i and FLEXIDOME multi 7000i IR are intelligent multi-directional cameras that combine four independent camera sensors, 3.3-7.7mm AVF lenses with a total resolution of 12 to 20 MP. They provide the ideal solution for wide area coverage like traffic intersections and building corners, where detailed insights of a scene are a must. What's more? The solution is highly flexible and convenient: although the solution houses four independent camera sensors, it requires only a single network connection, a single IP address and a single Video Management System license.Each imager capitalizes on the Bosch IVA and Camera Trainer technologies utilizing the built-in Artificial Intelligence, taking data usage to a whole new level.
Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
CMOS
Image Sensor Size:
1/2.7"
Color Supported:
  • Monochrome
  • Color
Field of View:
Wide: 85.1º x 62º (H x V) Tele: 38.7º x 29.0º (H x V)
Effective Camera Resolution:
20 Megapixel
Number of Sensors:
4
Video
Video Formats:
  • H.265
  • H.265 (HEVC)
  • H.264
  • MJPEG
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.70 mm
Maximum Focal Length:
7.70 mm
Lens Included:
Yes
Maximum Aperture:
f/1.9
Optical Zoom:
2.3x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Ethernet Technology:
Ethernet
Protocols:
  • IPv4
  • IPv6
  • UDP
  • TCP
  • HTTP
  • HTTPS
  • RTP/RTCP
  • IGMP
  • IGMP v2
  • IGMP v3
  • ICMP
  • ICMPv6
  • RTSP
  • FTP
  • ARP
  • SNMPv1 (MIB2)
  • SNMPv3 (MIB2)
  • 802.1X
  • DNS
  • DNSv6
  • DDNS
  • SOAP
  • LLDP
  • CHAP
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
24 V AC
Power Source Type:
  • AC
  • PoE+
Physical Characteristics
Mount Type:
  • Wall Mount
  • Pipe Mount
  • Pendant Mount
  • Pole Mount
  • Ceiling Mount
  • Parapet Mount
  • Conduit Mount
Form Factor:
Dome
Durability:
  • Water Resistant
  • Impact Resistant
  • Dust Resistant
  • Snow Resistant
  • Wind Resistance
  • Rain Resistant
Color Family:
White
Product Color:
White
Height:
5.4"
Diameter:
10.8"
Weight (Approximate):
7.45 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
131°F (55°C)
Maximum Operating Humidity:
100%
Miscellaneous
Features:
  • Ingress Protection
  • SD Card Local Storage
  • Region of Interest
  • Tamper Detection
  • Noise Detection
  • Day/Night
  • White Balance
  • Mirror
  • Privacy Masking
  • Microphone In
Indoor/Outdoor:
Indoor/Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
TAA Compliant:
Yes
Item Numbers
GTIN: 0800549981705, 4060039119629
UPC: 800549981705
EAN: 0800549981705, 4060039119629
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NDM-7703-AL Security Camera is also known as BOS-NDM7703AL
