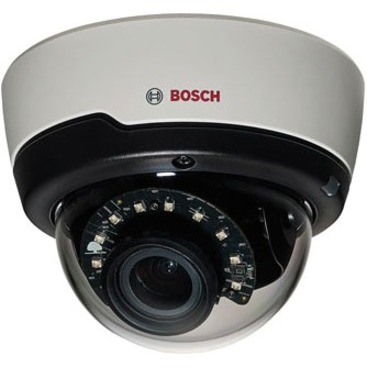

Bosch NDI-5502-AL Security Camera

Bosch - Fixed dome 2MP 3-10 mm AVF starlight indoor HD 60 fps, WDR, IR with H.265 and Essential Video Analytics.
  • Easy to install with auto zoom/focus lens, wizard and pre-configured modes
  • Fully configurable H.265 multi-streaming
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • High Dynamic Range to see every detail in both bright and dark areas of the scene
  • Starlight camera technology with excellent low-light performance
Read More
$781.00
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NDI-5502-AL Security Camera Overview
The 1080p indoor dome cameras from Bosch are professional surveillance cameras that provide high quality HD images for demanding security and surveillance network requirements. These domes are true day/night cameras offering excellent performance day or night.
TThere is a version with a built-in active infrared illuminator that provides high performance in extreme low-light environments.

Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact, as an installer, you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time.
With the FLEXIDOME IP starlight 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Wireless or remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect the Bosch Project Assistant app, available for iOS, Windows or Android, wirelessly to the camera. Or connect to the camera remotely via the network using the camera's web interface or the Bosch Configuration Manager.

Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that makes sure no critical data is lost and video is captured with excellent detail.

Starlight performance
The latest sensor technology combined with the sophisticated image processing and noise suppression results in an exceptional sensitivity in color. The lowlight performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.

High Dynamic Range
The high dynamic range mode is based on a multipleexposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight. The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.

Scene modes
Nine configurable modes are provided with the best settings for a variety of applications. In one click fully optimized image settings can be selected to suit the conditions. Different scene modes can be selected for different situations such as traffic or retail environments.
Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
147.64 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Field of View:
Horizontal field of view 37° - 106° - Vertical field of view 21° - 55°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
9 mm
Lens Included:
Yes
Lens Mount Type:
Board Mount
Minimum Aperture:
f/2
Maximum Aperture:
f/1.3
Optical Zoom:
3x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 12 V DC
  • 24 V AC
Physical Characteristics
Mount Type:
  • In-ceiling
  • Ceiling Mount
  • Surface Mount
  • Pendant Mount
  • Wall Mount
  • Pipe Mount
  • Pole Mount
  • Parapet Mount
Form Factor:
Dome
Product Color:
White
Height:
4"
Diameter:
5.3"
Weight (Approximate):
15.87 oz
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
93%
Miscellaneous
Features:
  • SD Card Local Storage
  • Automatic White Balance
  • Day/Night
  • Region of Interest
  • Dynamic Noise Reduction
  • Automatic Defog
  • Auto Tracking
  • Tamper Detection
  • Wide Dynamic Range
  • Cross Line Detection
  • Enter/Exit Detector
Indoor/Outdoor:
Indoor
Package Contents:
  • 1 x Fixed Dome 2MP HDR 3-9mm IR
  • 1 x Quick Installation Guide
  • 1 x Safety Instructions
  • 1 x Camera Screw Kit
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN: 0800549970730
UPC: 800549970730
EAN: 0800549970730
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NDI-5502-AL Security Camera is also known as BOS-NDI5502AL
