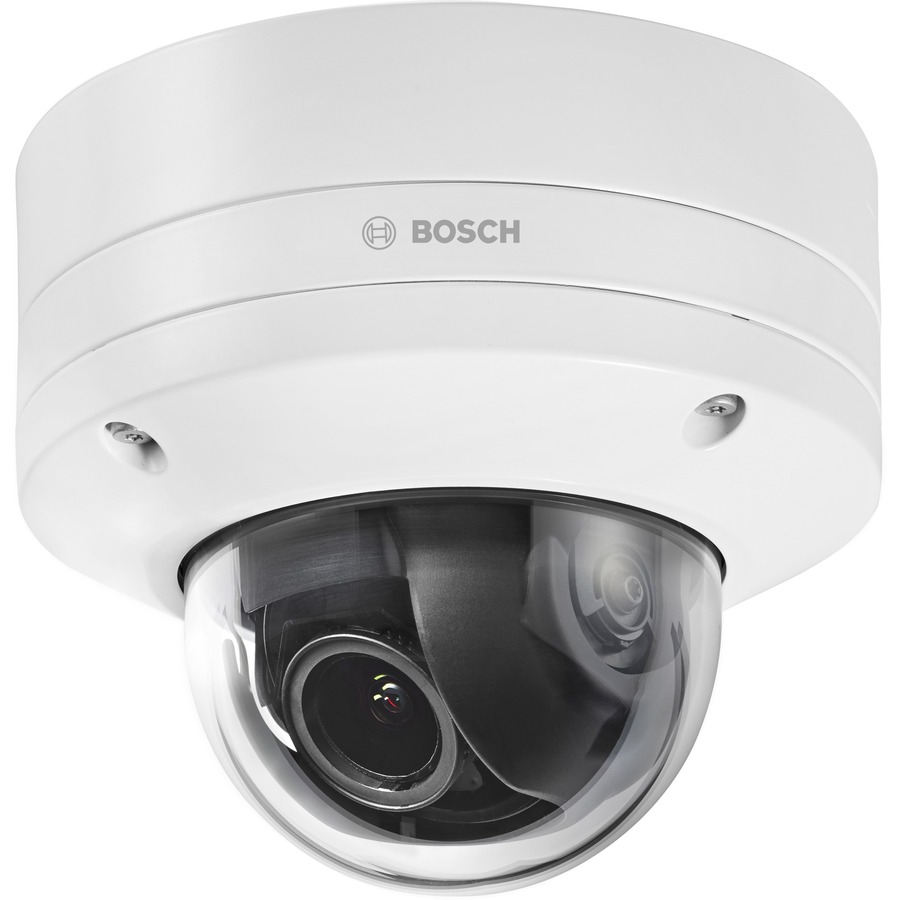

Bosch NDE-8512-RXT Security Camera

Bosch - Security Cameras, Bosch, Fixed Dome, 2MP HDR X 12-40mm, PTRZ IP66
  • Motorized Pan, Tilt, Roll, and Zoom (PTRZ) to set the required field of view, without having to touch the camera or lens allows for remote configuration and commissioning
  • Starlight X technology with 1/1.8" HD 1080p sensor for next level low-light performance with maximum detail
  • HDR X - High Dynamic Range to see every detail in both bright and dark areas of the scene without HDR motion blur and artefacts
  • Built-in Intelligent Video Analytics with object detection to trigger alerts and quickly retrieve data with the highest levels of reliability
  • Camera Trainer to train the camera to recognize user-specified target objects for both moving and non-moving objects
Read More
$1,824.78
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NDE-8512-RXT Security Camera Overview
The FLEXIDOME IP starlight 8000i - 2MP X series camera offers a 1/1.8" sensor, starlight X and HDR X technology at HD 1080p resolution. It provides the perfect balance between high resolution and extreme low-light sensitivity with starlight X technology, ensuring highly detailed images even in the most challenging situations.
HDR X enables the camera to capture video with a wide dynamic range across different light levels and without motion artefacts on moving objects. Fast moving objects are easily captured with frame rates of up to 60 frames per second.
The camera's remote commissioning functionality makes sure installation and commissioning can be done in very little time. Using a PC or a mobile device with the Bosch Project Assistant app, you can pan, tilt, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens.

Functions

Full Remote Commissioning
Installing a professional IP video surveillance camera has never been so easy. In fact, as an installer, you'll never want to go back to the old methods of installing cameras again. We've simplified the installation and commissioning stages to such a degree that they can be done in very little time.
With the FLEXIDOME IP starlight 8000i camera's remote commissioning functionality there's no need to go up and down ladders. Using a PC or a mobile device with the Bosch Project Assistant app, roll and zoom (PTRZ) and point the camera to the required field of view with a single click - without ever having to touch the camera or lens. Remote configuration and commissioning can also be done at a later stage once all cameras have been installed. Simply connect to the camera remotely via the network using the Bosch Project Assistant app, the camera's web interface, or the Bosch Configuration Manager.

Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that makes sure no critical data is lost and video is captured with excellent detail.

Starlight X - Next level starlight performance
Starlight X technology combines the latest high performance, large pixel sensors, optics, improved image processing and noise suppression, resulting in a 70% improved sensitivity compared to the standard starlight camera.
Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Field of View:
Wide: 36.8° x 20.3° (H x V) Tele: 12.8° x 7.3° (H x V)
Effective Camera Resolution:
2.1 Megapixel
Video
Video Formats:
  • H.265
  • H.264
  • MJPEG
  • H.265/HEVC
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
12 mm
Maximum Focal Length:
40 mm
Lens Included:
Yes
Minimum Aperture:
f/2.3
Maximum Aperture:
f/2.3
Optical Zoom:
3.3x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 12 V DC
  • 24 V AC
  • 26 V DC
Physical Characteristics
Mount Type:
  • In-ceiling
  • Surface Mount
  • Pendant Mount
  • Wall Mount
  • Pipe Mount
  • Ceiling Mount
  • Box Mount
  • Pole Mount
  • Parapet Mount
Form Factor:
Dome
Durability:
  • Impact Resistant
  • Snow Resistant
  • Wind Resistance
  • Rain Resistant
  • Water Resistant
  • Dust Resistant
Product Color:
White
Height:
5.8"
Depth:
6.9"
Weight (Approximate):
4.85 lb
Environmental Conditions
Minimum Operating Temperature:
-58°F (-50°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Wide Dynamic Range
  • SD Card Local Storage
  • Region of Interest
  • Automatic White Balance
  • Day/Night
  • Back Light Compensation (BLC)
  • Digital Noise Reduction
  • Defog
  • Cross Line Detection
  • Enter/Exit Detector
  • Auto Tracking
  • Tamper Detection
  • Face Detection
Package Contents:
  • 1 x FLEXIDOME IP 8000i Network Camera
  • 1 x T-20 Security Torx Bit
  • 1 x Quick Installation Guide
  • 1 x Safety Information
  • 2 x Rubber Grommet for the Ethernet Cable
  • 1 x Network Patch Cable 50 cm
  • 1 x 10-pin I/O Connector
  • 1 x 2-pin Power Connector
  • 1 x Cable Conduit for Side Entry
  • 1 x Washer for Cable Conduit
  • 1 x Adapter Plate for Cable Conduit (Ø 3/4" / M25)
  • 1 x Adapter Plate for Cable Conduit (Ø 1/2" / M20)
  • 3 x Identification Label
Impact Protection Rating:
  • IK10
  • IK10+
Ingress Protection Rating:
  • IP66
  • IP6K9K
Environmentally Friendly:
Yes
Item Numbers
GTIN: 0800549624893
UPC: 800549624893
EAN: 0800549624893
UNSPSC: 46171610
