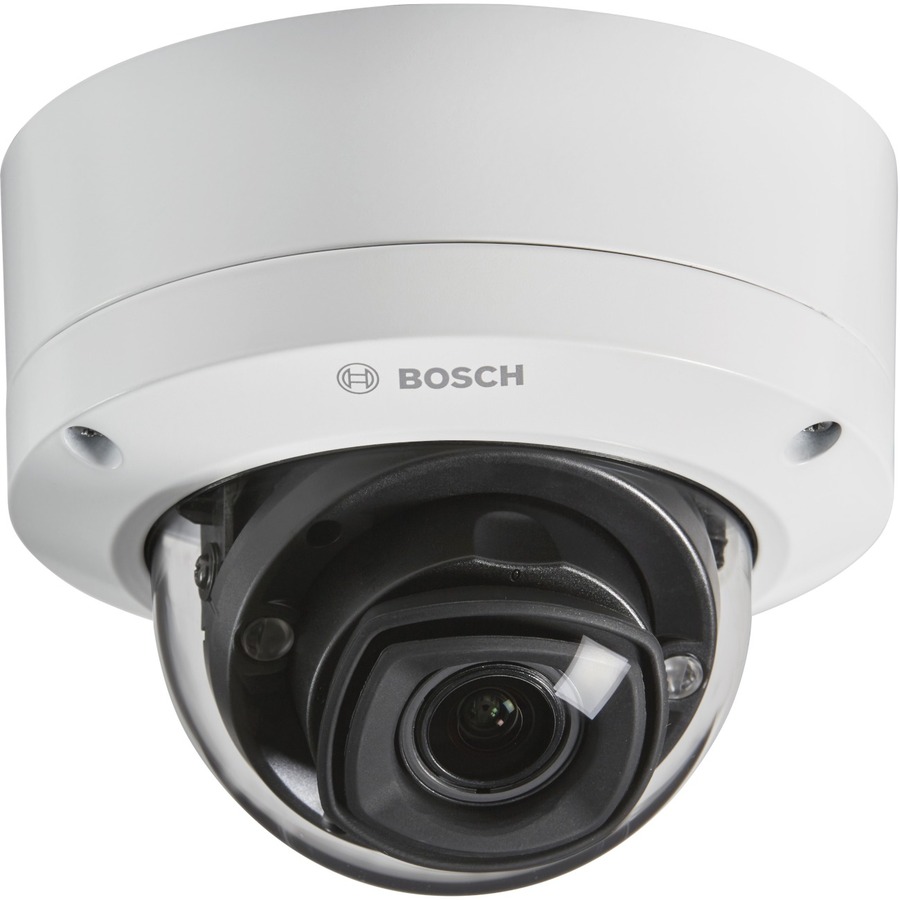

Bosch NDE-3503-AL Security Camera

The Bosch NDE-3503-AL Security Camera has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Bosch - Fixed dome 5MP HDR 3.2-10 mm IP66 IK10 IR
  • 1080p and 5MP resolutions
  • Built-in Essential Video Analytics to trigger relevant alerts and quickly retrieve data
  • Fully configurable H.265 multi-streaming
  • Easy to install with zoom/focus lens
  • Built-in IR illuminator with 30 m (98 ft) viewing distance
Read More
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NDE-3503-AL Security Camera Overview
The FLEXIDOME IP 3000i IR is built for high quality, 24/7 performance, with a range of reliable surveillance features, including Essential Video Analytics, and is designed for easy installation.
The compact and minimalist design provides high installation flexibility and offers various mounting options.

Functions

Essential Video Analytics
The built-in video analysis reinforces the Intelligence- at-the-Edge concept and now delivers even more powerful features. Essential Video Analytics is ideal for use in controlled environments with limited detection ranges.
The system reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules makes complex tasks easy and reduces false alarms to a minimum. Metadata is attached to your video to add sense and structure. This enables you to quickly retrieve the relevant images from hours of stored video. Metadata can also be used to deliver irrefutable forensic evidence or to optimize business processes based on people counting or crowd density information.

High Dynamic Range
The high dynamic range mode is based on a multiple- exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.
The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5.

Intelligent streaming
Smart encoding capabilities,together with Intelligent Dynamic Noise Reduction technology and analytics, reduce the bandwidth consumption to extremely low levels. Only relevant information in the scene, like motion, or objects found with the analytics, need to be encoded.
The camera is capable of triple streaming which allows the camera to deliver independent, configurable streams for live viewing, recording, or remote monitoring via constrained bandwidths. Each of these streams can be adapted independently to deliver high quality video, perfectly tailored to purpose, while reducing bit rate by up to 90% compared to a standard camera

H.265 high-efficiency video encoding
The camera is designed on the most efficient and powerful H.264 and H.265/HEVC encoding platform. The camera is capable of delivering high-quality and high-resolution video with very low network load. With a doubling of encoding efficiency, H.265 is the compression standard of choice for IP video surveillance systems.

Recording and storage management
Recording management can be controlled by the Bosch Video Recording Manager application, or the camera can use local storage and iSCSI targets directly without any recording software. Local storage can be used for recording "at the edge" or for Automatic Network Replenishment (ANR) technology to improve the overall recording reliability. Pre-alarm recording in RAM reduces bandwidth consumption on the network and extends the effective life of the memory card.
Technical Information
Recording Formats:
HD
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Number of IR LEDs:
3
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Monochrome
  • Color
Field of View:
Wide: 89° x 47° (H x V) Tele: 30° x 17° (H x V)
Effective Camera Resolution:
5.3 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
  • H.265 (HEVC)
Maximum Video Resolution:
3072 x 1728
Maximum Frame Rate:
30 fps
Analog Video Signal Format:
CVBS
Lens
Lens Type:
Zoom
Minimum Focal Length:
3.20 mm
Maximum Focal Length:
10 mm
Lens Included:
Yes
Maximum Aperture:
f/1.6
Optical Zoom:
3.1x
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/25 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Surface Mount
  • Corner Mount
  • Pole Mount
  • Pipe Mount
  • Ceiling Mount
  • Pendant Mount
  • Wall Mount
  • Conduit Mount
Form Factor:
Dome
Durability:
  • Impact Resistant
  • Vandal Resistant
Product Color:
White
Height:
4.4"
Diameter:
5.4"
Weight (Approximate):
1.68 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Day/Night
  • Motion Detection
  • Region of Interest
  • SD Card Local Storage
  • Automatic White Balance
  • Back Light Compensation (BLC)
  • Privacy Masking
  • Password Protection
  • Automatic Defog
  • Built-in Infrared Illuminator
Indoor/Outdoor:
Outdoor
Package Contents:
  • Fixed Dome 5MP HDR 3.2-10mm IP66 IK10 IR
  • 1 x Quick Installation Guide
  • 1 x Safety Information Document
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NDE-3503-AL Security Camera is also known as BOS-NDE3503AL
