Bosch - 1.5 MP / 1080p Corner Mount Do me Camera No Grip 2.0mm

For remote surveillance needs, this network camera is best suited
Up to 1440 x 1080 video resolution
CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
2 mm maximum focal length for dependable identification distances with better coverage
f/2 maximum aperture for better light absorption and dependable, better-quality results
HD recording format for stunning, vivid video results with maximum efficiency
Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
Corner Mount mount type ensures optimal results and maximum convenience
Day/Night feature for better reliance and usability
Wired connectivity technology delivers exceptional performance to offer maximum usability

Need a different version? See all Bosch Parts Accessories

$1,689.48

Add to Quote

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch NCN-90022-F1 Products Overview

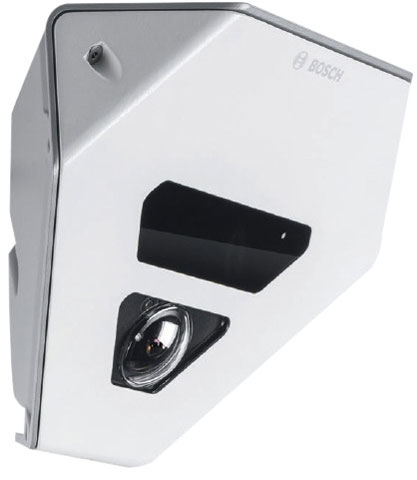

The FLEXIDOME corner 9000 MP is a vandal-resistant, corner-mount camera featuring a no-grip, anchor-free design. The high resolution 1440 x 1080p images and the integrated infrared illumination allow 24/7 effective professional networked surveillance in high risk, vandal-prone applications under any ambient lighting conditions, even completely dark rooms. The ultra-wide lens enables the camera to view the entirety of a small room, including the floor beneath the camera. The camera is impossible to grip or hang from, providing maximum safety for applications such as waiting rooms, elevators and psychiatric care rooms.

Detailed Specs

Technical Information

Recording Formats:

Display & Graphics

Image Sensor Type:

CMOS

Image Sensor Size:

1/2.7"

Color Supported:

Color
Monochrome

Field of View:

91° to 121°

Effective Camera Resolution:

1.5 Megapixel

Video

Video Formats:

H.264
MJPEG

Maximum Video Resolution:

1440 x 1080

Maximum Frame Rate:

30 fps

Video Signal Format:

NTSC

Audio

Audio Formats:

AAC

Lens

Lens Type:

Fixed

Maximum Focal Length:

2 mm

Lens Included:

Yes

Lens Mount Type:

Board Mount

Maximum Aperture:

f/2

Exposure

Shortest Shutter Speed:

1/15000 Second

Longest Shutter Speed:

1/30 Second

Network & Communication

Connectivity Technology:

Wired

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Protocols:

IPv4
IPv6
UDP
TCP
HTTP
HTTPS
RTP/RTCP
IGMP v2
IGMP v3
ICMP
ICMPv6
RTSP
FTP
Telnet
ARP
DHCP
SNTP
SNMP (MIB-2)
SNMP
802.1X
DNS
DNSv6
DDNS
SMTP
iSCSI
UPnP (SSDP)
DiffServ (QoS)
LLDP
SOAP
CHAP
Digest Authentication

Interfaces/Ports

Analog Video Out:

Yes

Network (RJ-45):

Yes

Audio Line In:

Yes

Audio Line Out:

Yes

Power Description

Maximum Power Consumption:

8.40 W

Input Voltage:

24 V AC

Physical Characteristics

Mount Type:

Corner Mount

Form Factor:

Dome

Durability:

Water Resistant
Vandal Resistant

Height:

5.7"

Width:

9.4"

Depth:

6.7"

Weight (Approximate):

4.06 lb

Miscellaneous

Features:

Day/Night
SD Card Local Storage
ePTZ

Certifications & Standards:

IEC 62471
EN 60950-1
UL 60950-1
CAN/CSA-C22.2 NO. 60950-1
EN 50130-4
EN 50130-5
FCC Part15 Subpart B, Class B
EMC Directive 2004/108/EC
EN 55022/24 Class B
VCCI J55022 V2 / V3
AS/NZS CISPR 22 (Equal to CISPR 22)
ICES-003 Class B
EN 50121-4
EN 50132-5-2
IEC 62676-2-3
CE
FCC
UL
cUL
C-Tick
CB
VCCI
IP65
IK10

Country of Origin:

Portugal

TAA Compliant:

Yes

NDAA Compliant:

Yes

Item Numbers

UNSPSC: 46171610
