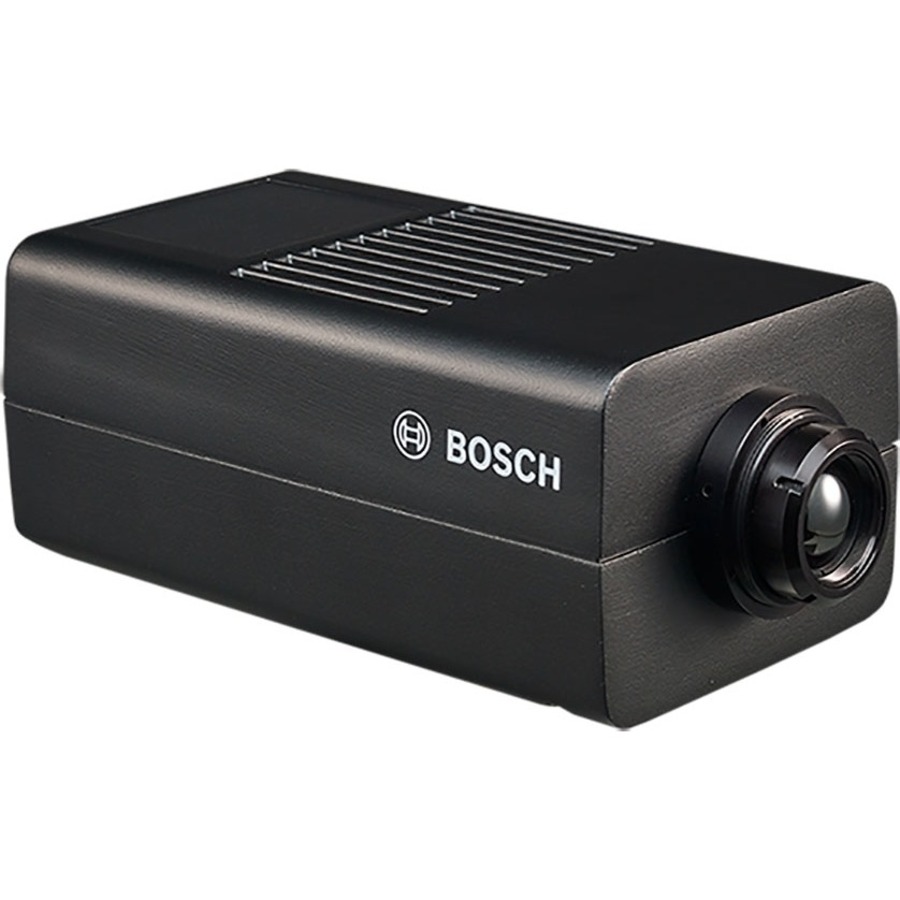

Bosch NBT-9000-F19QSM Security Camera

Bosch - DINION IP thermal 9000 RM FIXED THERMAL
  • Network camera - Helps achieve high-quality video results
  • Wired connectivity technology offers maximum visual convenience
Read More
$14,615.08
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NBT-9000-F19QSM Security Camera Overview
The DINION IP thermal 9000 RM camera, based on an un-cooled vanadium oxide microbolometer, is a contactless tool to measure surface temperature at short range. The camera has a QVGA sensor with a frame rate of 9 FPS.

The camera is part of the indoor system for surface temperature measurement. Key components of the system include the camera, an embedded VIDEOJET decoder 7000 computer with thermal data analytics (VJD-7513), a keyboard (KBD-UXF), and a specific firmware license.

The system combines thermal temperature detection with the market-leading Intelligent Video Analytics from Bosch. Quick, on-site calibration and temperature threshold setup enables the system for alarming in cases where the surface temperature of an object or of human skin is warmer than the configured threshold. The system can monitor historical temperature data continuously for deviations, and will then estimate the new threshold in order to mitigate the environmental influences.

Temperature detection

The camera has a high-sensitivity thermal sensor which obtains long-wavelength infrared (LWIR) from target objects. LWIR lets users detect target temperature quickly, without physical contact.

Intelligent Video Analytics

The integrated video analytics is both robust and intelligent. The Intelligence-at-the-Edge concept now delivers even more powerful features:
  • Simple calibration
  • False alarm reduction
  • Extended range identification
The video analytics reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules, together with object filters and tracking modes, makes complex tasks easy.

Calibration is quick and easy - just enter the height of the camera. The internal gyro/accelerometer sensor provides the rest of the information to precisely calibrate the video analytics.
Display & Graphics
Thermal Image Sensor Type:
Uncooled Vanadium Oxide Microbolometer
Color Supported:
Color
Video
Video Formats:
  • MJPEG
  • H.264 (MP)
Thermal Video Resolution:
320 x 240
Video Signal Format:
NTSC
Lens
Maximum Thermal Focal Length:
0.75"
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Product Color:
Black
Height:
2.3"
Width:
3.1"
Length:
6.2"
Weight (Approximate):
1.34 lb
Environmental Conditions
Minimum Operating Temperature:
50°F (10°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
95%
Miscellaneous
Indoor/Outdoor:
Indoor
Package Contents:
  • DINION IP Thermal 9000 RM
  • 1 x Audio connector
  • 1 x Alarm connector
  • 1 x Quick installation guide
Environmentally Friendly:
Yes
Country of Origin:
Portugal
TAA Compliant:
Yes
Item Numbers
GTIN: 0800549976466
UPC: 800549976466
EAN: 0800549976466
UNSPSC: 46171610
