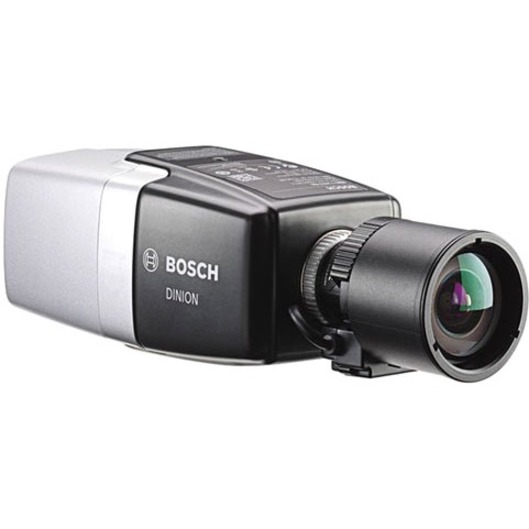

Bosch NBN-73023-BA Security Camera

Bosch - DINION IP starlight 7000 1080p IVA
  • Excellent low-light performance
  • Built-in Intelligent Video Analytics to trigger relevant
  • alerts and quickly retrieve data
  • Intelligent Dynamic Noise Reduction reduces
  • bandwidth and storage requirements by up to 50%
  • Extended Dynamic Range mode to see details in
  • bright and dark areas simultaneously
  • Auto back focus for fast installation
Read More
$1,276.75
In Stock
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch NBN-73023-BA Security Camera Overview
This camera provides clear images 24/7 - even at night or under low-light conditions.
The exceptional starlight sensitivity enables this camera to work with a minimum of ambient light. The extended dynamic mode provides detailed images in scenes with challenging lighting.
The camera is available in 1080p or 720p resolution versions and provides up to 60 images per second. There is a selection of high quality lenses separately available.

Functions

Exceptional low-light performance
The latest sensor technology combined with the sophisticated noise suppression results in an exceptional sensitivity in color. The low-light performance is so good that the camera continues to provide excellent color performance even with a minimum of ambient light.

Fast performance
The 60 frames per second mode provides for optimum performance in fast action scenes that ensures no critical data is lost.

High Dynamic Range
The camera has High Dynamic Range. This is based on a multiple-exposure process that captures more details in the highlights and in the shadows even in the same scene. The result is that you can easily distinguish objects and features, for example, faces with bright backlight.

The actual dynamic range of the camera is measured using Opto-Electronic Conversion Function (OECF) analysis according to IEC 62676 Part 5. This method is used to provide a standard result which can be used to compare different cameras.

Content Based Imaging Technology
Content Based Imaging Technology (CBIT) is used to radically improve image quality in all lighting conditions and to identify areas for enhanced processing. The camera examines the scene using Intelligent Video Analytics and provides feedback to re-tune the image processing. This provides better detail in the areas that matter and better all-round performance. With IVA, the Intelligent Auto Exposure technology, allows you to view moving objects in bright and dark areas of a scene.

Intelligent Video Analytics
The built-in video analytics is both robust and intelligent. The Intelligence-at-the-Edge concept now delivers even more powerful features:
  • Simple calibration
  • False alarm reduction
  • Extended range identification
  • Crowd and queue management
  • Density and flow counting
The mission critical video analytics reliably detects, tracks, and analyzes objects, and alerts you when predefined alarms are triggered. A smart set of alarm rules, together with object filters and tracking modes, makes complex tasks easy.
Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
  • Color
  • Monochrome
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • H.264
  • MJPEG
  • H.264 (MP)
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Video Signal Format:
  • NTSC
  • PAL
Analog Video Signal Format:
CVBS
Lens
Lens Included:
No
Lens Mount Type:
CS-Mount
Exposure
Shortest Shutter Speed:
1/15000 Second
Longest Shutter Speed:
1/30 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Mount Type:
  • Tripod Mount
  • Wall Mount
  • Ceiling Mount
  • Pole Mount
  • Column Mount
  • Junction Box Mount
  • Bracket Mount
Form Factor:
Box
Product Color:
Metallic Titanium
Height:
2.6"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
1.85 lb
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
122°F (50°C)
Operating Humidity:
93%
Miscellaneous
Features:
  • Wide Dynamic Range
  • Dynamic Noise Reduction
  • Region of Interest
  • ePTZ
  • Day/Night
  • Automatic White Balance
  • Auto Gain Control
  • Back Light Compensation (BLC)
  • Automatic Defog
  • Cross Line Detection
  • Enter/Exit Detector
  • Audio Detection
  • Tamper Detection
  • Privacy Masking
  • SD Card Local Storage
Indoor/Outdoor:
Indoor/Outdoor
Package Contents:
  • 1 x DINION IP Starlight 7000 HD
  • 1 x Sensor protection cap (mounted on camera)
  • 1 x Power connector (2 Pins)
  • 1 x Data/Alarm connector (12 Pins)
  • 1 x Installation Guide
  • 1 x Identification label sheet
  • 1 x C/CS mount adapter ring for mounting a lens with a C-mount
Environmentally Friendly:
Yes
TAA Compliant:
Yes
NDAA Compliant:
Yes
Item Numbers
GTIN: 0800549805704
UPC: 800549805704
EAN: 0800549805704
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch NBN-73023-BA Security Camera is also known as BOS-NBN73023BA
