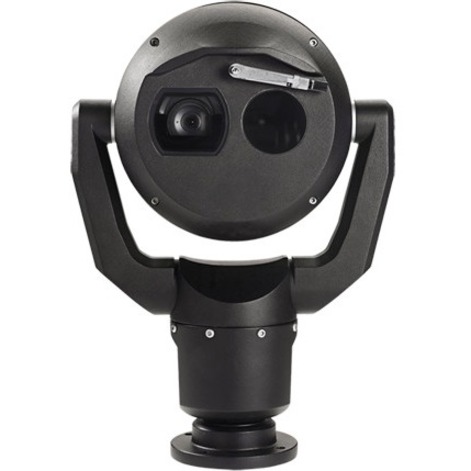

Bosch MIC-9502-Z30BVS Security Camera

Bosch - MIC IP 9000I PTZ THERMAL VGA 50 MM 2MP 30X 9HZ, BLACK, REQUIRES 95W HPOE - Discontinued: Replaced by MIC-9512-Z30BVS
  • Ruggedized IP PTZ camera with high performance thermal imager and HD visible imager sitting side-by-side
  • Designed to provide the highest availability of useable images regardless of lighting conditions in extreme environments (weather, dust/debris/smoke, etc.)
  • Unique metadata fusion feature provides the ultimate in situation awareness
  • Exceptional early detection capabilities: Object detection up to 4517 m (14,820 ft) based on DRI criteria
  • Advanced on-board intelligent video tracking, object detection even when camera is on tours
Read More
$42,809.74
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch MIC-9502-Z30BVS Security Camera Overview
The MIC IP fusion 9000i camera is an advanced PTZ surveillance platform designed to provide early detection in mission-critical applications. With its dual visible/thermal imaging capabilities, the MIC IP fusion 9000i camera is the perfect solution for robust and high-quality imaging needs. The camera's distinctive, ruggedized design is wellsuited for extreme environments and adverse weather conditions such as high winds, rain, fog, ice, and snow. Precision engineered using Bosch's domain expertise in material and mechanical engineering, the camera offers the most advanced imaging and positioning system solution available on the market.

Functions

Exceptional imaging performance

The MIC IP fusion 9000i camera incorporates a highperformance thermal imaging core and a 1080p starlight camera integrated in the same housing. This allows the camera to deliver simultaneous thermal and visible video streams, maximizing the ability to detect and react to long-range threats.

Thermal imager

The thermal imager incorporates the latest un-cooled vanadium oxide microbolometer technology. This high sensitivity thermal imager is equipped with a fixed focal length Athermal lens that balances the field-ofview with maximizing the detection distance. User-adjustable settings for contrast and gain allow operators to optimize the image, ensuring delivery of the highest quality video. In addition, a wide variety of user-selectable thermal color modes are available allowing further optimization of the thermal image. Depending on model mix, QVGA resolution (320 pixels) and VGA resolution (640 pixels) versions are available, with choice of low (<9Hz) or high (30Hz) frame rates.

Visible imager

The 1080p60-capable visible imager has starlight technology and a 30x optical/12x digital zoom lens that provides high-quality images, excellent color performance, and unbeatable low-light sensitivity. High dynamic range ensures clear image reproduction in the most challenging high-contrast scenes.

Ruggedized design for extreme applications

The MIC IP fusion 9000i camera is designed for surveillance applications beyond the mechanical capabilities of normal PTZ domes or conventional positioning systems.
  • Ingress
The camera is environmentally sealed and complies with Type 6P and IP68 standards, when attached to a MIC-DCA or a MIC-WMB. This level of protection eliminates any risk of dust or water ingress, making the camera a perfect choice for use in extreme environments with rain, dust, snow, flying debris, and other challenging conditions. In addition, the MIC camera's ingress protection method does not need periodic maintenance, which is required on cameras with pressurized housings.
Technical Information
Recording Formats:
Full HD
HD Recording:
Yes
Display & Graphics
Image Sensor Type:
Exmor R CMOS
Thermal Image Sensor Type:
Uncooled Vanadium Oxide Microbolometer
Color Supported:
  • Color
  • Monochrome
Field of View:
70° x 52°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
  • JPEG
  • H.265/HEVC
Maximum Video Resolution:
1920 x 1080
Thermal Video Resolution:
640 x 480
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
4.30 mm
Maximum Focal Length:
129 mm
Lens Included:
Yes
Minimum Aperture:
f/4.7
Maximum Aperture:
f/1.6
Optical Zoom:
30x
Maximum Thermal Focal Length:
0.35"
Exposure
Shortest Shutter Speed:
1/30000 Second
Longest Shutter Speed:
1/1 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
  • 24 V AC
  • 30 V AC
Power Source Type:
AC
Physical Characteristics
Mount Type:
  • Wall Mount
  • Corner Mount
  • Pole Mount
  • Conduit Mount
  • Bracket Mount
Form Factor:
Dome
Durability:
  • Corrosion Resistant
  • Weather Resistant
  • Impact Resistant
  • Vibration Resistant
  • Dust Resistant
  • Water Resistant
  • Rain Resistant
  • Snow Resistant
  • Fog Resistant
Product Color:
Black
Height:
16.6"
Width:
11.7"
Depth:
7.1"
Weight (Approximate):
19.84 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
149°F (65°C)
Operating Humidity:
100%
Miscellaneous
Features:
  • Auto Gain Control
  • Noise Reduction
  • Day/Night
  • Removable IR Cut-off Filter
  • Automatic White Balance
  • Defog
  • Heater
  • Built-in Web Server
  • Surge Protection
  • PTZ
Indoor/Outdoor:
Outdoor
Package Contents:
  • MIC-9502-Z30BVS9 PTZ thermal VGA-9mm 2MP 30x 9Hz, black
  • Quick Installation Guide
  • 1 x Base Gasket
  • 1 x RJ45 Coupler
  • 4 x MAC Address Labels
  • 1 x Ground Screw
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP68
  • IP67
  • IP66
Environmentally Friendly:
Yes
Environmental Certification:
  • WEEE
  • RoHS
Item Numbers
UNSPSC: 46171610
