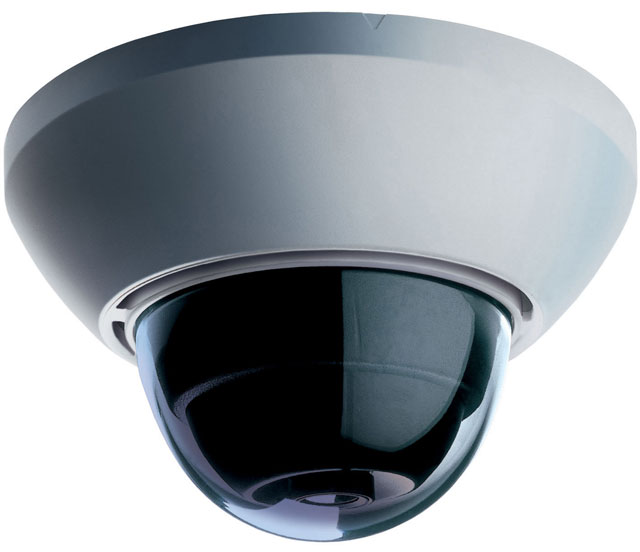

Bosch LTC 1423/20 Surveillance Camera

Bosch LTC 142x Series - 1/4 inch, 470 TVL, with 6 mm Fixed Iris Lens
Fixed compact cameras in stylish surveillance domes offering high resolution.

The Bosch LTC 142x Series are fixed compact cameras in stylish surveillance domes. With economical, indoor models and high-performance, vandal resistant styles, LTC 142x Series cameras deliver in the most challenging situations. The LTC 142x Series is designed for high resolution applications and delivers incredible picture quality, easy installation and simplified operation. The high performance 1/4-inch monochrome or color CCD cameras come in a choice of 2.1 mm, 3 mm or 6 mm integral lenses for super-wide angle or standard view.

General Information

  • Product Type: Surveillance Camera
  • Product Series: LTC 14xx
  • Brand Name: Bosch
  • Manufacturer: The Bosch Group
  • Product Model: LTC 1423/20
  • Product Name: FlexiDome II LTC 1423/20 Surveillance Camera
  • Product Line: FlexiDome II
  • Packaged Quantity: 1

Physical Characteristics

  • Diameter: 4.5"
  • Height: 3"
  • Weight (Approximate): 14.11 oz
  • Form Factor:
    • Dome
    • Surface Mount
    • Ceiling Mount
    • Wall Mount

Interfaces/Ports

  • Analog Video Out: Yes

Display & Graphics

  • Image Sensor Size: 1/4"
  • Image Sensor Type: CCD
  • Color Supported:
    • Color
    • Monochrome
  • Illumination: Minimum 4.5 Lux
  • White Balance Modes:
    • ATW
    • AWB

Other

  • Certifications & Standards:
    • CE Immunity
    • CE Emission Class B
    • FCC Class B
    • cUL
    • UL
  • Application/Usage: Indoor

Lens

  • Lens Included: Yes
  • Focal Length: 6 mm
  • Wide Angle: Yes
  • Aperture Range: f/2

Exposure

  • Longest Shutter Speed: 1/60 Second
  • Shortest Shutter Speed: 1/100000 Second

Video

  • Video Signal Format: NTSC
  • Horizontal Resolution: 470 TVL

Network & Communication

  • Connectivity Technology: Cable

Full specifications (PDF)

Full specifications (PDF)

Brand Bosch
Model LTC 142x Series
Connection Analog
Form Dome
Resolution 470
Environment Indoor


The Bosch LTC 1423/20 is also known as BOS-LTC142320 or LTC142320 .
