Bosch LC2-PC60G6-8H Products

Bosch - 60 Watt 8" waveguide coupled coax ceiling loudspeaker
$600.92
Add to Quote
Bosch Parts Accessory Model Overview
Products and parts from Bosch.
Bosch LC2-PC60G6-8H Products Overview

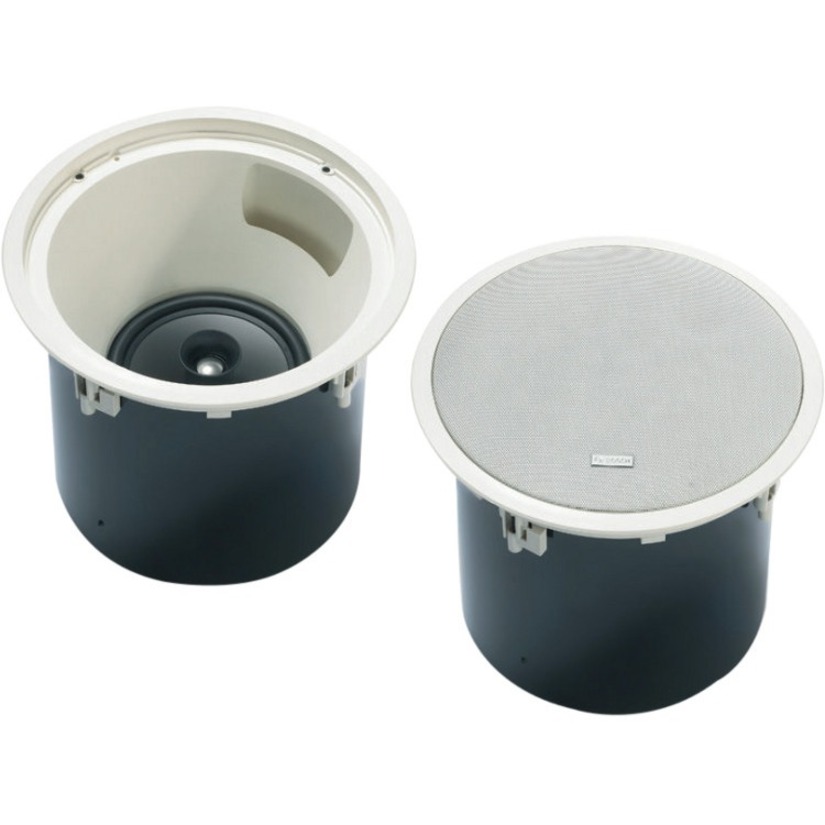

The LC2-PC60G6-8H is an 8-inch two-way Premium-sound Ceiling Loudspeaker which provides, wide dispersion, high efficiency, high maximum output, ease-of-installation, innovative dual waveguide that provides directivity control to 1 kHz and wide-range reproduction of music and voice.
It consists of a baffle/waveguide assembly, grille, back-can enclosure, 8-inch coax two-way loudspeaker and internal output-power matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter.
Technical Information
Minimum Frequency Response:
50 Hz
Maximum Frequency Response:
20 kHz
Maximum Speaker Impedance:
167 Ohm
Tweeter Driver Size:
0.98"
Woofer Driver Size:
7.87"
Tweeter Driver Material:
Mylar
Woofer Driver Material:
Polypropylene
Tweeter Material:
Mylar
Woofer Material:
Polypropylene
Audio
RMS Output Power:
60 W
PMPO Output Power:
75 W
Power Description
Input Voltage:
120 V AC
Physical Characteristics
Product Color:
White
Product Material:
Zinc Plated Steel
Grill Material:
Powder Coated Steel
Material Details:
Acrylonitrile Butadiene Styrene (ABS) Baffle
Mount Type:
Ceiling Mountable
Depth:
11.9"
Weight (Approximate):
13.23 lb
Miscellaneous
Package Contents:
  • LC2-PC60G6-8H Premium-Sound High Ceiling Loudspeaker 60W
  • 1 x 322 mm (12.625 in.) Circular Cut-Out Template
  • 1 x Tile Bridge / C-Ring
  • 1 x Paint Shield
  • 1 x Installation Instruction
Certifications & Standards:
  • CE
  • EN 60065
  • BS 5839-8
  • EN 60849
Item Numbers
GTIN: 0650267214025, 4773743269626
UPC: 650267214025
EAN: 0650267214025, 4773743269626
UNSPSC: 43211607
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch LC2-PC60G6-8H Products is also known as BOS-LC2PC60G68H
