Bosch LC2-PC60G6-12 Products

Part Number: LC2-PC60G6-12
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Crossover Type
2-way
RMS Output Power
64 W
PMPO Output Power
100 W
Minimum Frequency Response
65 Hz

Product Description:

  60 Watt 12" coax ceiling loudspeaker

Bosch Parts Accessory Model Overview

Products and parts from Bosch.
Bosch LC2-PC60G6-12 Products Overview

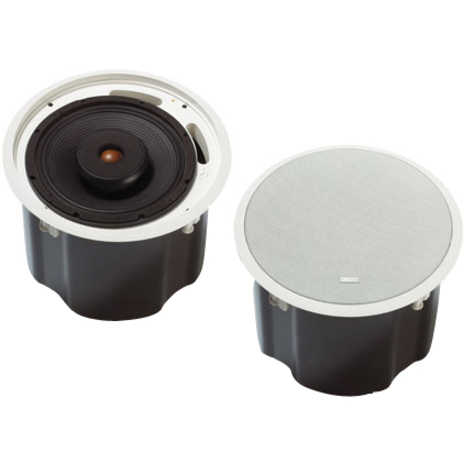

The LC2-PC60G6-12 is a 12-inch two-way Premium-sound Ceiling Loudspeaker which provides, wide dispersion, high efficiency, high maximum output, ease-of-installation and wide-range reproduction of music and voice. It is intend for high ceiling applications.
Technical Information
Crossover Type:
2-way
RMS Output Power:
64 W
PMPO Output Power:
100 W
Minimum Frequency Response:
65 Hz
Maximum Frequency Response:
20 kHz
Impedance:
167 Ohm
Maximum Crossover Frequency:
2 kHz
Sound Pressure Level:
118 dB
Physical Characteristics
Product Color:
White
Product Material:
  • Acrylonitrile Butadiene Styrene (ABS)
  • Zinc Plated
  • Steel
  • Ceramic
Form Factor:
Ceiling Mountable
Depth:
13.11"
Diameter:
16.3"
Weight (Approximate):
29.32 lb
Miscellaneous
Package Contents:
  • LC2-PC60G6-12 Premium-sound Ceiling Loudspeaker 64W
  • 1 x Tile Bridge/C-ring
  • Mounting Ring
  • Baffle Assembly
  • Grille
  • 1 x 386 mm (15.20 in.) Circular Cut-out Template
  • 1 x Paint Shield
  • 1 x Installation Instruction
Certifications & Standards:
  • BS 5839-8
  • EN 60849
  • CE
  • IEC 268-5
  • EN 60065
  • UL94V0
Item Numbers
GTIN: 0800549173117, 4773743269619
UPC: 800549173117
EAN: 0800549173117, 4773743269619
UNSPSC: 52161512
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Bosch LC2-PC60G6-12 Products is also known as BOS-LC2PC60G612
