Bosch LBB1949/00 Accessory

Bosch - Gooseneck condenser microphone

XLR ensures a reliable wired connection
With 100 Hz - 16 kHz frequency range, listen to deep lows and euphoric highs
Can be placed on a desk to ensure a noise-free voice to the listeners

Need a different version? See all Bosch Parts Accessories

$206.88

Chat Now for Qty Discount

Add to Quote

Overview

Bosch Parts Accessory Model Overview

Products and parts from Bosch.

Bosch LBB1949/00 Accessory Overview

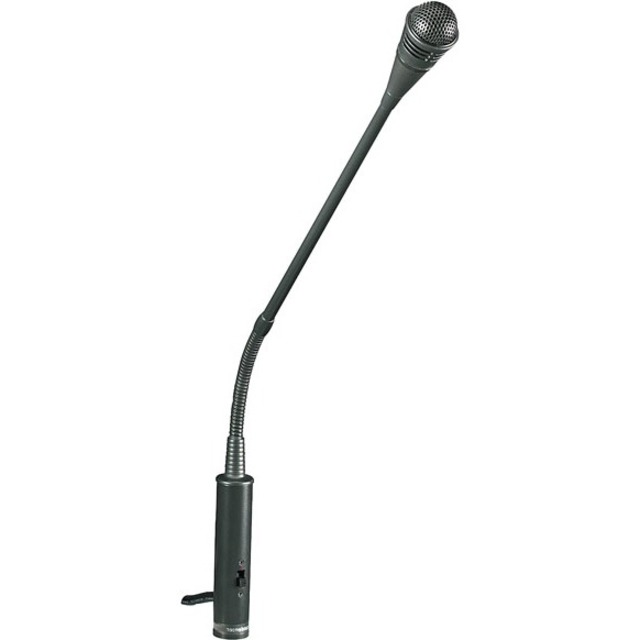

The gooseneck microphone is a stylish high quality Region Certification unidirectional condenser microphone, mainly intended for public address applications.

Functions

The flexible stem base has a screw fitting, and the microphone comes with a multi-thread adaptor (3/8" , 1/2" , and 5/8") for mounting onto floor-stands, lecterns, panels or desktops. The microphone runs off the phantom power supply from the amplifier to which it is connected.

Detailed Specs

Technical Information

Connectivity Technology:

Wired

Cable Length:

6.56 ft

Distortion (<):

0.6%

Minimum Frequency Response:

100 Hz

Maximum Frequency Response:

16 kHz

Impedance:

200 Ohm

Phantom Power:

Yes

Microphone

Microphone Technology:

Condenser

Microphone Type:

Desktop

Sound Pressure Level:

110 dB

Controls/Indicators

Microphone Controls:

On/Off

Interfaces/Ports

Host Interface:

Physical Characteristics

Product Color:

Dark Gray

Length:

19.1"

Diameter:

1.2"

Weight (Approximate):

10.58 oz

Miscellaneous

Package Contents:

LBB 1949/00 Gooseneck Condenser Microphone
1 x DIN to XLR Adapter

Additional Information:

Phantom power supply
Voltage range x 12 to 48 V
Current consumption x <8 mA
Sensitivity x 0.7 mV @ 85 dB SPL (2 mV/Pa)
Maximum input sound level x 110 dB SPL
Distortion x <0.6% (maximum input)
Equivalent input noise level x 28 dBA SPL (S/N 66 dBA ref. 1 Pa)
Frequency response x 100 Hz to 16 kHz
Output Impedance x < 200 ohm
Connector x 5-pin DIN 180° (lockable)
Operating temperature x -10 °C to +55 °C (+14 °F to +131 °F)
Storage and transport temperature x -40 °C to +70 °C (-40 °F to +158 °F)
Relative humidity x <95%

Certifications & Standards:

CE
EN 55103-2
EN 55103-1

Item Numbers

GTIN: 0800549167796

UPC: 800549167796

EAN: 0800549167796

UNSPSC: 52161520
